| Verified for Lead-Free Soldering |
1 |
| Installation Temperature max. |
60 °C |
| Operating Temperature min. |
-65 °C |
| Attenuation Coefficient b max. |
0.03069 |
| Attenuation Coefficient b |
0.0279 |
| Attenuation Coefficient a |
0.3732 |
| Attenuation Coefficient a max. |
0.41052 |
| Calculated Power |
N |
| Centre Conductor Diameter |
0.92 mm |
| Centre Conductor Material |
Copper, Silver plated |
| Installation Temperature min. |
-20 °C |
| Operating Temperature max. |
165 °C |
| Outer Conductor 2 Description |
Outer conductor |
| Outer Conductor 3 Description |
Outer conductor |
| Outer Conductor 4 Description |
Outer conductor |
| Screen Frequency max. |
18 GHz |
| Screen Frequency min. |
0.1 GHz |
| Outer Cond1 Coverage |
100 % |
| Outer Conductor1 Diameter |
3.21 mm |
| Outer Conductor1 Material |
Copper, Silver plated |
| Outer Cond2 Coverage |
83 % |
| Outer Conductor2 Diameter |
3.53 mm |
| Outer Conductor2 Material |
Multi-end: Copper - Tinned |
| 2002/96/EC (WEEE) |
no special marking needed |
| Class |
1148 |
| 2006/1907/EC (REACH) |
compliant |
| 2000/53/EC (ELV) |
compliant |
| Armoring 1 Description |
Armor |
| Armoring 2 Description |
Armor |
| Armoring 3 Description |
Armor |
| Armoring 4 Description |
Armor |
| Cable Category |
Flexible microwave cable |
| Cable Family |
Multiflex: Flexible alternatives to semi-rigid microwave cables |
| CABLE GROUP Cable |
Y17 |
| Calc IL/Power up to Freq |
17 MHz |
| Capacitance |
95 pF/m |
| Centre Conductor Design |
Wire |
| CW Power |
373 W |
| CW Power Frequency |
1 GHz |
| Description |

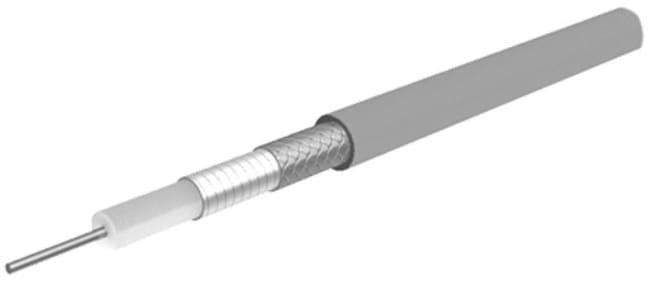

RG402 dimension, 50 Ohm, 33 GHz, 165°C, ø4.14 mm, FEP jacket |
| Dielectric Diameter |
2.93 mm |
| Dielectric Material |
PTFE (Polytetrafluoroethylene) |
| Distribution txt |
Flexible, RG402 dimension, 50 Ohm, 33 GHz, 165°C, ø4.14 mm, FEP jacket |
| Dynamic Bend Radius |
40 mm |
| Fire Test a |
IEC 60332-1 |
| Fire Test b |
UL 1581 § 1080 (VW-1) |
| Halogen Free |
N |
| ID |
MULTIFLEX_141 |
| Impedance |
50 Ohm |
| Impedance Tolerance ± |
2 Ohm |
| Insulation Resistance |
100000000 MOhm/m |
| Jacket Colour |
RAL 5015 - bl |
| Jacket Diameter |
4.14 mm |
| Jacket Material |
FEP (Fluorinated ethylene propylene) |
| Jacket Tolerance |
0.1 mm |
| 2011/65/EC (RoHS) |
compliant |
| Number of Screens |
2 |
| Only as Assembly |
N |
| Operating Frequency |
33 GHz |
| Operating Voltage |
1.9 kV |
| Outer Conductor1 Design |
wrapped Foil |
| Outer Conductor2 Design |
Braid |
| Print on Jacket |
HUBER+SUHNER MULTIFLEX 141 (PA no.) |
| Propagation Velocity |
70.6 % of c |
| Weight |
4.5 kg/100m |
| Screen Effectiveness |
90 dB |
| Signal Delay |
4.7 ns/m |
| Static Bend Radius |
10 mm |
| Test Voltage |
3.8 kV |
| OBJECT_ID |
6425409 |
