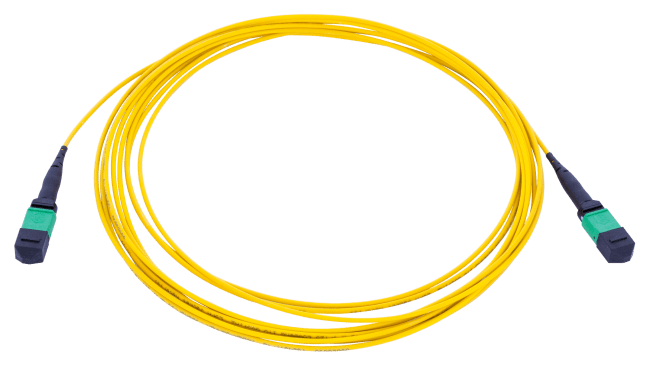

MA12_MTAF_MTAF_A230y_30.0_BB
| H+S | |
|---|---|
| Insertion loss typical | ≤ 0.1 dB , ≤ 0.1 dB |
| Return loss | ≥ 60 dB , ≥ 60 dB |
| Interface | connectorized , connectorized |
| Insertion loss max. | ≤ 0.35 dB , ≤ 0.35 dB |
| Polarity | Methode A |
| Flammability rating | UL 94 V-0 |
| bre.usedcable01_crush-resistance-installation | 5000 N/dm |
| Polishing | APC , APC |
| Fire propagation standard | IEC 60332-1-2 |
| Assembly family | Base-12 MTP to MTP |
| Operation temperature | -10 °C ... 60 °C |
| Performance class H+S | B , B |
| Outer jacket material | LSFH |
| Tensile strength during installation | 500 N |
| Fiber quantity | 12 , 12 |
| Application Area | Indoor |
| Product code | MA12_MTAF_MTAF_A230y_XX.X_BB |
| Gender | Female , Female |
| Crush resistance in service | 1000 N/dm |
| Cable Description | Multifiber bundle cable |
| Outer jacket diameter | 3mm |
| Type | Fiber Optic Connector , Fiber Optic Connector |
| Fiber type | E9/125A2 |
| Strain relief | aramide yarn |
| Connector family | MTP ® , MTP ® |
| Tensile strength in service | 200 N |
| bre.usedcable01_bending-minimal-operation-radius | 20 mm |
| CPR class | Dca-s1a,d0,a1 |
| Performance specification standard | IEC 61753-1 Cat. C |
