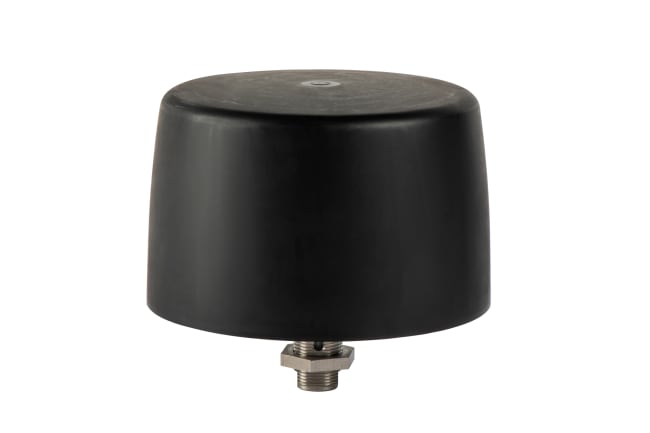

K8134322
| H+S | |
|---|---|
| Dimensions | 70 mm x 110 mm (Height x Diameter) |
| Environment (application) | Outdoor |
| Back plate/base plate material | Aluminum |
| Remarks | For further information please refer to data sheet. , Requires mounting on a conductive surface 70 x 70 cm / 27.6 x 27.6 inches minimum. , Packaging size (outside): 117 x 117 x 114 mmRadiator and base: Aluminum.Radome: High impact plastic.All metal parts of this antenna are DC grounded.Extreme robust and car-wash proof vehicular antenna. |
| Radome colour | Grey |
| Bands | Tetra: 406 MHz ... 410 MHz, VSWR 1.9Tetra: 410 MHz ... 425 MHz, VSWR 1.7Tetra: 425 MHz ... 428 MHz, VSWR 1.9 |
| Antenna family | SPECIAL PURPOSE |
| Storage temperature | -55 °C ... 85 °C |
| Back plate/base plate colour | Black |
| Product code | K8134322 |
| Weight | 0.4 kg |
| Operation temperature | -40 °C ... 85 °C |
