| Height |
142mm |
| Band 5 |
false, false, false, false, false, false |
| Notes |

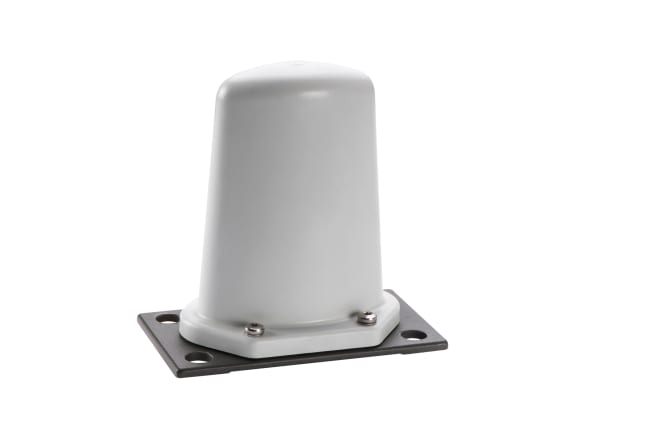

Vehicle Antenna Frequency Range 410-470 MHz Low profile antenna in fiberglass radome Gain dB 0 (ref. to the quarter-wave antenna) |
| Environment remarks |
Environmental tests:EN 50155:2007 Flammability rating:DIN 5510-2, UL94 HB |
| Storage Temperature min. |
-55°C |
| Standards 1 |
Railway EN 50155 |
| Band 7 |
false, false, false, false, false, false |
| Standards 3 |
Railway EN 50125 |
| Standards 4 |
Industrie EN 60068 |
| Composite power max. |
170W |
| Frequency1 |
690-960 |
| Product family |
SENCITY® Special Communication |
| Ambient temperature |
50°C |
| Radome Colour |
grey |
| Wind Speed operational |
500km/h |
| Operation Temperature max. |
85°C |
| Environment |
outdoor |
| Configuration |
SiSo |
| IP Rating |
IP66 |
| Depth |
80mm |
| Band 8 |
false, false, false, false, false, false |
| Grounding |
true |
| Recycling Label |
false |
| Band 3 |
false, false, false, false, false, false |
| Weight |
0.5kg |
| Width |
145mm |
| Storage Temperature max. |
85°C |
| Impedance [Ω] |
50 |
| Connector position |
bottom |
| Connector gender |
jack (female) |
| Band 1 |
false, false, false, false, false, true |
| Band 4 |
false, false, false, false, false, false |
| Flammability rating |
UL 94-HB |
| Band 6 |
false, false, false, false, false, false |
| Operating Temperature min. |
-40°C |
| Polarisation Port |
vertical |
| Mechanical Remarks |
Radiator and Flange: Aluminum. Radome: Fiberglass, colour: Light grey. All screws and nuts: Stainless steel. Sealing: Neoprene and rubber. Note: Don’t use detergents that might harm the sealing. This antenna, tested by an independent institute, is DC grounded to protect against lightning and high-tension lines. Note: Keep mounting surface clear of paint for electrical contact. Packaging size (outside): 151 x 87 x 210 mm |
| Band 2 |
false, false, false, false, false, false |
| Mounting1 |
vehicle |
| Service1 |
TETRA, Public Safety (400 MHz) |
| 2002/96/EC (WEEE) |
no special marking needed |
| Class |
1367 |
| Connector type |
false |
| Description |
Sencity Special Communication Antenna |
| Frequency max. 1 |
470MHz |
| Frequency min. 1 |
410MHz |
| ID |
K813132 |
| 2011/65/EC (RoHS) |
compliant |
| VSWR |
1.5 |
| OBJECT_ID |
7723393 |
