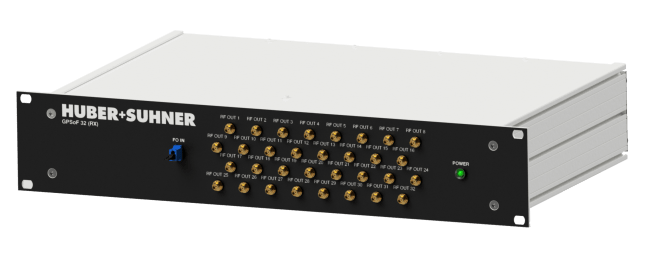

GPSoF32 (RX)
| H+S | |
|---|---|
| Dimensions (LxWxH) | 285mm x 430mm x 88mm |
| Product family | GNSS Expansion |
| Link noise figure typical | 6 dB |
| Time delay | 55 ns |
| Suitable Products | D-GNSSoF1-1T-L12 85135572P-GNSSPoF16-RxE-01 85238861Direct GPSoF - MAC8-1 (RX) 85128283 |
| Weight in lbs | 6.6 lbs |
| bre.receiver-transmitter-suppression-ratio-typ | 40 dB |
| GNSS band | L1L2 |
| Storage temperature | -40 °C ... 85 °C |
| Power in | 12 V DC |
| VSWR | < 1.5 |
| Fiber type | Singlemode |
| Product code | GPSoF32 (RX) |
| Frequency response flatness | 2 dB |
| bre.receiver-transmitter-optical-power-signal-max | 5 mW |
| Rack height unit | 2 U |
| bre.receiver-transmitter-supply-voltage-range | 10 V DC ... 12.5 V DC |
| bre.receiver-transmitter-connector-family-fo-input | LC UPC |
| Link gain typical | 25 dB |
| Supply voltage typical | 12 V DC |
| bre.receiver-transmitter-suppression-ratio-min | 30 dB |
| Power connector | 3pole connector series 680, socket |
| Weight | 3 kg |
| Operation case temperature | -5 °C ... 55 °C |
