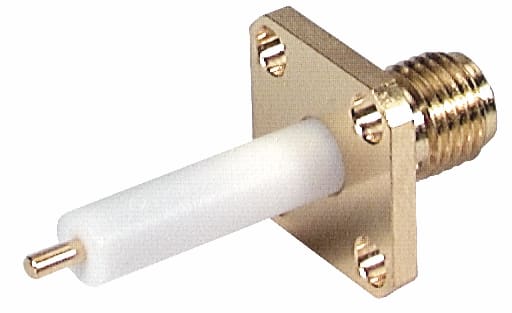

23 SMA-50-0-3/111NE
Coaxial connector
SMA,50 Ohm,Straight panel receptacle,female,flange mount
| H+S | |
|---|---|
| Product code | 23_SMA-50-0-3/111_N |
| Flange type | square flange / 12.7 X 12.7 |
| Insulator | PFA / PTFE |
| Centre contact | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Connector type | Straight panel receptacle jack, flange mount |
| Tab style | Standard |
| Details | CAS: 7439-92-1 Lead |
| Standard | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Mating cycles | 500 |
| Weight | 0.0032 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Interface type | SMA |
| Gender | jack |
| Operation temperature | -65 °C ... 125 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Outer conductor | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Interface frequency | 18 GHz |
| Body | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
