| Installation Temperature max. |
60 °C |
| Outer Jacket Diameter |
7.2 mm |
| Print on Jacket |
HUBER+SUHNER G 03362-01 50 Ohm (production order number) |
| Operating Temperature min. |
-40 °C |
| Outer Jacket Material |
LSFH (modified polyethylene) |
| 2nd Screen Design |
Braid |
| Attenuation Coefficient b max. |
0.2611 |
| 2nd Screen Material |
Copper, Tin plated |
| Outer Jacket Colour |
RAL 9005 - bk |
| Attenuation Coefficient b |
0.2373 |
| Attenuation Coefficient a |
0.3455 |
| 2nd Screen Diameter |
5.6 mm |
| Outer jacket Tolerance ± |
0.2 mm |
| 2nd Screen Coverage |
96 % |
| Attenuation Coefficient a max. |
0.38 |
| Calculated Power |
N |
| Centre Conductor Diameter |
0.9 mm |
| Centre Conductor Material |
Copper, Tin plated |
| Installation Temperature min. |
-20 °C |
| Operating Temperature max. |
85 °C |
| Outer Cond1 Coverage |
96 % |
| Outer Conductor1 Diameter |
3.6 mm |
| Outer Conductor1 Material |
Copper, Tin plated |
| 2002/96/EC (WEEE) |
no special marking needed |
| Class |
1148 |
| 2006/1907/EC (REACH) |
compliant |
| 2000/53/EC (ELV) |
compliant |
| Cable Category |
Flexible triaxial cable |
| Cable Family |
G: RF cables with PE dielectrics |
| Cable Group |
W2 |
| Calc IL/Power up to Freq |
17 MHz |
| Capacitance |
101 pF/m |
| Centre Conductor Design |
Strand-19 |
| CW Power |
100 W |
| Description |

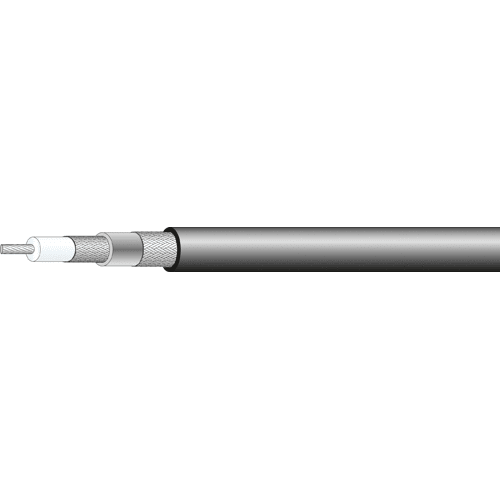

Triax (RG58 alternative core), 50 Ohm, 2 GHz, 85°C, ø7.2 mm, LSFH jacket |
| Dielectric Diameter |
2.95 mm |
| Dielectric Material |
PE (Polyethylene) |
| Distribution txt |
Triax (RG58 alternative core), 50 Ohm, 2 GHz, 85°C, ø7.2 mm, LSFH jacket |
| Dynamic Bend Radius |
110 mm |
| Halogen Free |
1 |
| Halogen Test |
IEC 60754 |
| ID |
G_03362-01 |
| Impedance |
50 Ohm |
| Impedance Tolerance ± |
2 Ohm |
| Insulation Resistance |
100000000 MOhm/m |
| Jacket Colour |
RAL 9005 - bk |
| Jacket Diameter |
4.95 mm |
| Jacket Material |
LSFH (modified polyethylene) |
| Jacket Tolerance |
0.15 mm |
| 2011/65/EC (RoHS) |
compliant |
| Only as Assembly |
N |
| Operating Frequency |
2 GHz |
| Operating Voltage |
2.5 kV |
| Outer Conductor1 Design |
Braid |
| Propagation Velocity |
66 % of c |
| Repeated Bend Radius |
75 mm |
| Weight |
9.7 kg/100m |
| Signal Delay |
5 ns/m |
| Static Bend Radius |
36 mm |
| Test Voltage |
5 kV |
| OBJECT_ID |
7518847 |
