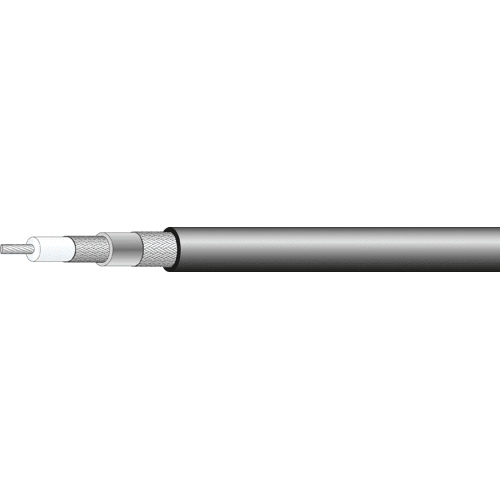

G_02332-01
H+S | |
---|---|
Insulation resistance | 100000000 MΩ*m |
Inner conductor resistance | 126.2 Ω/km |
Velocity of signal propagation | 66 % |
Weight | 3 kg/m |
Outer conductor resistance | 31.6 Ω/km |
Signal delay | 5.03 ns/m |
Product code | G_02332-01 |
Operating Voltage (at sea level) | ≤ 1.5 kV |
Available as assembly only | No |
Cable group | W1 |
Capacitance | 100.7 pF |
Test voltage (50 Hz/1 min) | ≤ 3 kV |
Installation temperature | -20 °C ... 85 °C |
Dynamic bending radius | 85 mm |
Operation temperature | -25 °C ... 85 °C |
Screening effectiveness | 75 dB at frequency 0.001 GHz ... 2GHz |
Static bending radius | 20 |
Cable family | G: RF cables with PE dielectrics |
Operating frequency | 2 |
Repeated bending radius | 42 mm |
Impedance | 50 Ω +/-2Ω |
