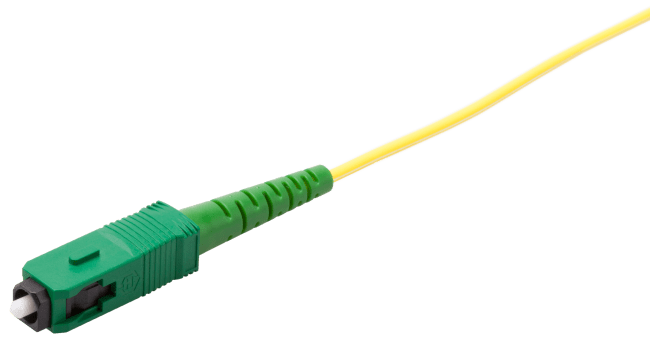

FSC-CMAX-H600_100-P
| H+S | |
|---|---|
| Housing colour | Green |
| Flammability rating | UL 94 V-0 |
| UV resistance | Yes |
| Gender | Plug |
| Connector family | SC |
| Tensile strength | 100 N |
| Mechanical interface according to | IEC 61754-4, TIA 604-3 (SC) |
| Connector type | SC UniBody connector |
| Housing material | Plastic |
| Operation temperature | -40 °C ... 85 °C |
| Tuning type | 45º |
| Chemical resistance | good |
| Compatible cable diameter | 0.6mm to 3.5mm |
| Optical interface according to | IEC 61755-3-1/2, (UPC/APC) |
| Available variants | Various Housing colors and ferrules |
| Mating cycles | 1000 |
| Product code | FSC-UB-XX-XXXX |
| Weight | 2.4 g |
| Ferrule outer diameter | 2.499 mm |
