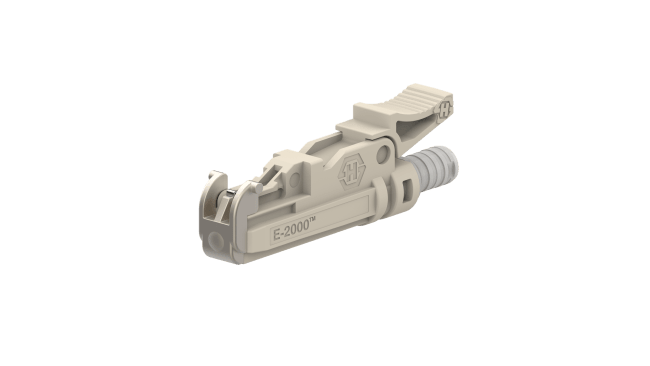

FLSH-2000-B150_100-P
| H+S | |
|---|---|
| Flammability rating | UL 94 V-0 |
| Gender | Plug |
| Tensile strength | 100 N |
| Mechanical interface according to | IEC 61754-15, TIA 604-16 (E-2000®) |
| Connector type | E-2000® UniBody |
| Housing material | Plastic |
| Tuning type | 45º |
| Compatible cable diameter | 0.6mm to 3.5mm |
| Optical interface according to | IEC 61755-3-1/2, (UPC/APC) |
| Available variants | Various Housing and lever colors, various ferrules |
| Mating cycles | 1000 |
| Product code | FLSH-UB-XX-XX-XXXX |
| Ferrule material | Zirconia |
| Ferrule outer diameter | 2.499 mm |
| Connector family | E-2000® |
| Operation temperature | -40 °C ... 85 °C |
