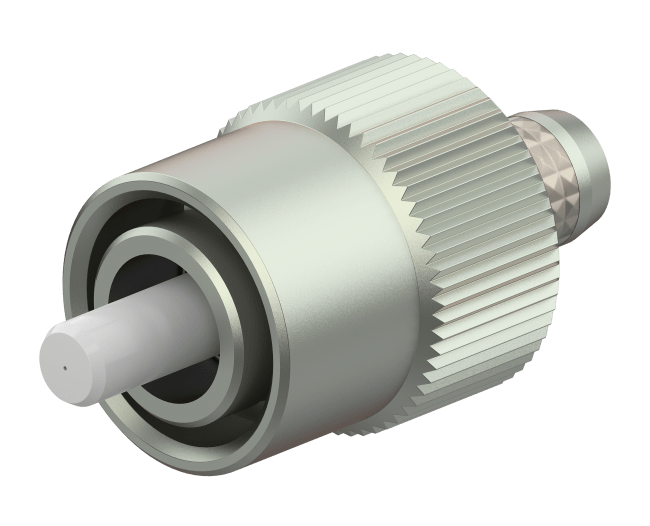

FCPC-Z/M-D101_100-P
| H+S | |
|---|---|
| Flammability rating | UL 94 V-0 |
| UV resistance | Yes |
| Mechanical interface according to | IEC 61754-13, TIA 604-4B, EN 50377-2-1, EN 50377-2-2 (FC) |
| Tuning type | 45º |
| Ferrule concentricity | 0.007 mm |
| Insertion loss typical | 0.3 dB |
| Mating cycles | 200 |
| Product code | FCPC-Z/M-D101_100-P |
| Housing colour | Metal |
| Insertion loss 97% | 0.75 dB |
| Gender | Male |
| Tensile strength | 100 N |
| Connector type | FC Unibody |
| Housing material | Metal |
| Chemical resistance | good |
| Compatible cable diameter | 0.6mm to 3.5mm |
| Return loss | > 35 dB |
| Optical interface according to | IEC 61755-3-1 (UPC/PC) |
| Available variants | Various ferrules |
| Ferrule inner diameter | 0.233 mm |
| Ferrule material | Ceramic |
| Weight | 4.8 g |
| Ferrule outer diameter | 2.499 mm |
| Connector family | FC |
| Operation temperature | -40 °C ... 85 °C |
| Fiber quantity | 1 |
