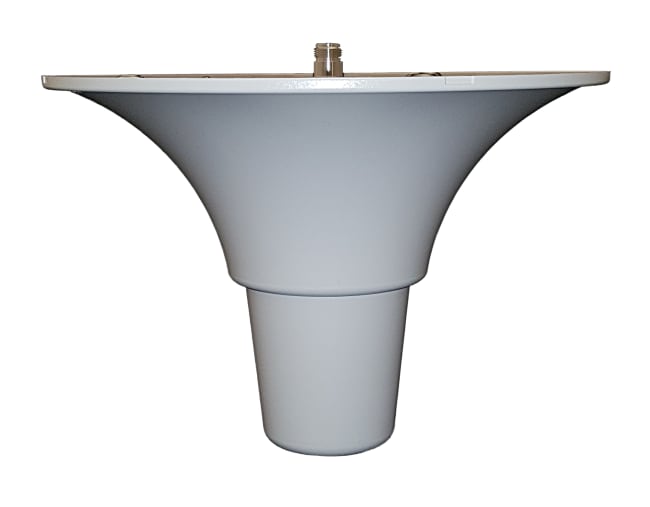

92210001 SENCITY® SC Indoor Antenna
| H+S | |
|---|---|
| Dimensions | 189.8 mm x 274.1 mm (Height x Diameter) |
| Environment (application) | Indoor |
| Remarks | For further information please refer to data sheet. , IMD level -155 dBc at carrier power 2x 20dBmIndicated VSWR values for 380-806 MHz are valid for a metallic ground plane of 0.4 x 0.4m or larger. Otherwise for this band gain is at 1dBi and VSWR at 3All metal parts including the inner conductor are DC grounded. , Back plane: Aluminum protected through chemical passivation.Radome: UV protected polycarbonateMounting: Ceiling mounting |
| Bands | 380 MHz ... 806 MHz, VSWR 2.5, Gain 2 dBi806 MHz ... 960 MHz, VSWR 2, Gain 4 dBi1395 MHz ... 1432 MHz, VSWR 2, Gain 5 dBi1710 MHz ... 2170 MHz, VSWR 2, Gain 5 dBi2300 MHz ... 2500 MHz, VSWR 2, Gain 5 dBi3300 MHz ... 3700 MHz, VSWR 1.9, Gain 5 dBi4900 MHz ... 6000 MHz, VSWR 1.9, Gain 6 dBi |
| Antenna family | SENCITY® SC Indoor Antenna |
| Product code | 92210001 |
| Weight | 0.55 kg |
| Flammability rating | UL 94- |
