92_SMA-50-0-10/111_NE

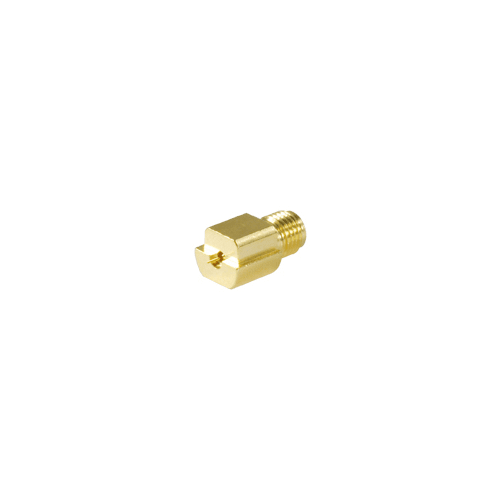

Coaxial connector
SMA, 50 Ohm, Edge mount PCB female
| H+S | |
|---|---|
| Insulator | PTFE (Polytetrafluoroethylene) |
| Interface frequency | 18 GHz |
| Centre contact | Copper Beryllium Alloy / SUCOPRO Plating |
| Connector type | Straight PCB jack |
| Board mounting type | edge mount |
| Interface type | SMA |
| Operation temperature | -65 °C ... 165 °C |
| Body | Brass / SUCOPRO Plating |
| Standard | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Impedance | 50 Ω |
| Mating cycles | 500 |
| Outer conductor | Brass / SUCOPRO Plating |
| Product code | 92_SMA-50-0-10/111_N |
| Height above PCB HA | 3.7 mm |
| Weight | 0.0044 kg |
| Gender | jack |
