91_SMP-50-0-L1/111_NE
Height above PCB HA | 2.39mm |
Printleg Length HL | 0mm |
Weight | 0.00061kg |
Engangement Force max. | 44.48N |
Height of Stand Off HS | 0mm |
Disengagement Force max. | 8.89N |
Product is Lead-Free Soldered | not soldered |
Board Mounting Type | edge mount |
2002/96/EC (WEEE) | no special marking needed |
Class | 1183 |
2006/1907/EC (REACH) | compliant |
Body Material | Copper Beryllium Alloy |
Body Plating | Gold Plating (Nickel underplated) |
Centre Contact Material | Copper Beryllium Alloy |
Centre Contact Plating | Gold Plating (Nickel underplated) |

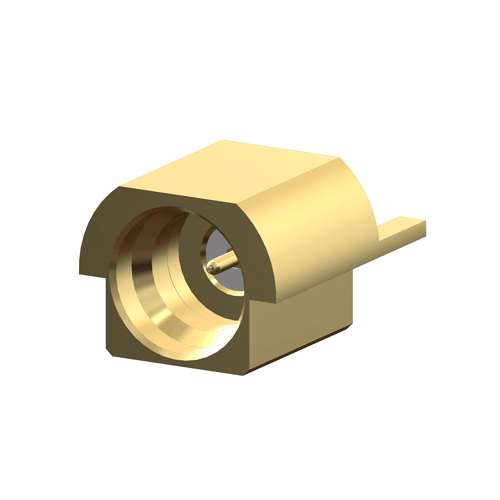

Connector Description | Edge mount PCB plug |
CONNECTOR SERIES | SMP |
Gender | plug |
ID | 91_SMP-50-0-L1/111_N |
Impedance | 50 |
Insulator Material | PTFE (Polytetrafluoroethylene) |
Interface Frequency max. | 40GHz |
Interface Standards | MIL-STD-348 SMP |
Junction | none |
2011/65/EC (RoHS) | compliant |
Mounting | edge |
Number of Matings | 500 |
Operating Temperature max. | 125°C |
Operating Temperature min. | -55°C |
Outer Contact Material | Copper Beryllium Alloy |
Outer Contact Plating | Gold Plating (Nickel underplated) |
Packaging | Single |
PATTERN CLASSES | 91 |
CONNECTOR SHAPE | straight |
Type Number | 91_SMP-50-0-L1/111_NE |
OBJECT_ID | 5259078 |
