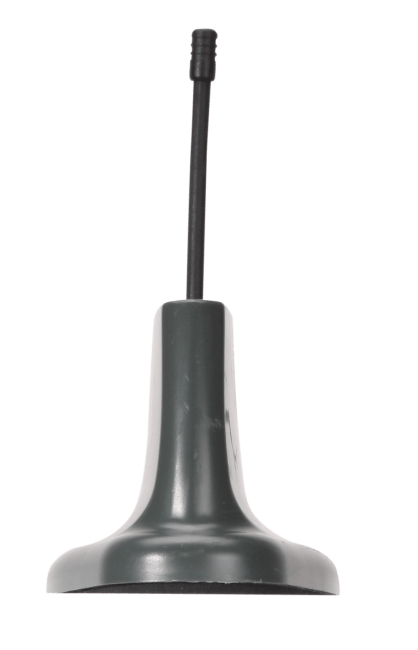

9091.99.0254
H+S | |
---|---|
Dimensions | 135 mm x 15 mm (Height x Diameter) |
Remarks | Colour black Ground plane metal ground plane is needed, min. 500x500mm Thread M5 Frequency range 410 - 430 MHz Nominal impedance 50 Ohm VSWR 2 Gain 3.5 dBi (on metal ground plane) Composite power max. 10 W |
Flammability rating | UL 94-HB |
Operation temperature | -40 °C ... 85 °C |
Product code | 9091.99.0254 |
Weight | 0.05 kg |
