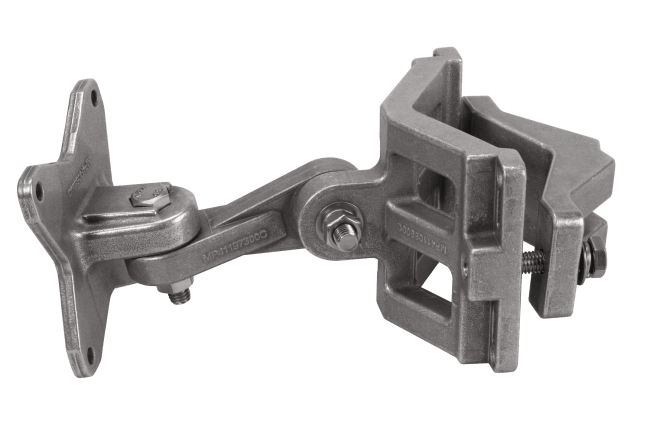

9091.99.0201 MONT.BRAKETT
Height | 115mm |
Mast Diameter max. | 76mm |
Mast Diameter min. | 25mm |
Notes | Down- and sidetilt bracket for SPOT-M antennas |
Depth | 190mm |
Operating Temperature min. | -55°C |
Operation Temperature max. | 85°C |
Weight | 0.86kg |
Material | Aluminium |
Transport Temperature max. | 85°C |
Width | 115mm |
Storage Temperature max. | 85°C |
Mechanical Remarks | Azimuth resolution step:2° on wall Tilt sesolution step2° on pole and wall Payload:20 kg max. |
Transport Temperature min. | -55°C |
Storage Temperature min. | -55°C |
2002/96/EC (WEEE) | no special marking needed |
Class | 1226 |
2006/1907/EC (REACH) | compliant |
Description | SENCITY Planar Antenna Downtilt Bracket |
ID | 9091.99.0201 |
2011/65/EC (RoHS) | compliant |
OBJECT_ID | 4897487 |
