9071.99.0650

Produktnummer: 84017488
Huber Suhner
Lagerbeholdning:

H+S
Insulation resistance > 10 GΩ (@ 100 V)
Alter discharge current ≥ 1 operations (@ 65 Arms, 11 cycles)
Glow-Arc transition current < 0.5 A
Ingress protection (IP Rating) Unmated / IP66, IP68, according to IEC 60529 (24 h of water, 1 m)
DC current ≤ 2.5 A at 48 V
DC sparkover 470 V, +/- 15 % (@ 100 V/s)
Capacitance < 1 pF (@ 1 MHz)
Recovery time 7 sec. at 25°C ambient temperature
Storage temperature -40 °C ... 85 °C
Operation temperature -20 °C ... 85 °C
Impulse sparkover 100 V/µs 725 V
Impulse discharge current ≥ 1 operations (@ 30 kA, 8/20 µs)
Glow voltage approx. 70 V (@ 10 mA)

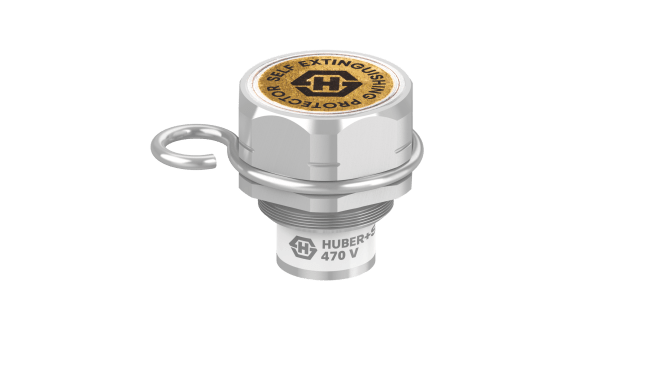

Product description Gas discharge tube 470 V (SEMPER)
DC Holdover voltage < 150 ms (@ 135 V)
Impulse sparkover 1000 V/µs 1000 V
Arc voltage approx. 10 V (@ > 1 A)
Product code 9071.99.0650
CW power frame ≤ 590 W
Housing material / plating Brass / SUCOPLATE (R) Plating
Turn-off time 20 sec. typically at 2.0 A and 25°C ambient temperature
Weight 12.7 g
