9071.99.0647
| H+S | |
|---|---|
| Insulation resistance | > 10 GΩ (@ 100 V) |
| DC current | ≤ 2.5 A at 48 V |
| Capacitance | < 1 pF (@ 1 MHz) |
| Storage temperature | -40 °C ... 85 °C |
| Impulse discharge current | ≥ 1 operations (@ 30 kA, 8/20 µs) |
| DC Holdover voltage | < 150 ms (@ 135 V) |
| Arc voltage | approx. 10 V (@ > 1 A) |
| Product code | 9071.99.0647 |
| Housing material / plating | Brass / SUCOPLATE (R) Plating |
| Turn-off time | 20 sec. typically at 2.0 A and 25°C ambient temperature |
| Alter discharge current | ≥ 1 operations (@ 65 Arms, 11 cycles) |
| Glow-Arc transition current | < 0.5 A |
| Ingress protection (IP Rating) | Unmated / IP66, IP68, according to IEC 60529 (24 h of water, 1 m) |
| DC sparkover | 230 V, +/- 15 % (@ 100 V/s) |
| Recovery time | 7 sec. at 25°C ambient temperature |
| Impulse sparkover 100 V/µs | 450 V |
| Glow voltage | approx. 70 V (@ 10 mA) |
| Impulse sparkover 1000 V/µs | 675 V |
| Weight | 13.7 g |
| Operation temperature | -20 °C ... 85 °C |

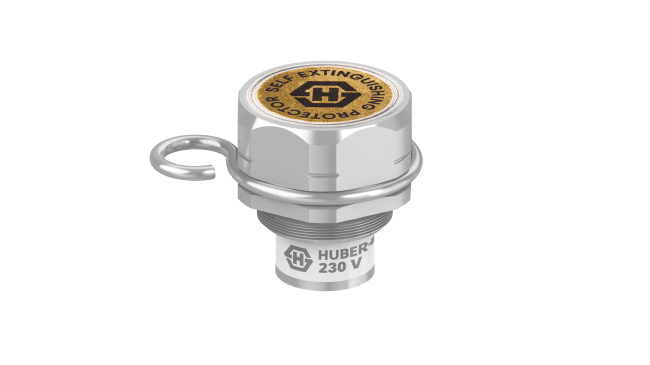

| Product description | Gas discharge tube 230 V (SEMPER) |
| CW power frame | 140 |
