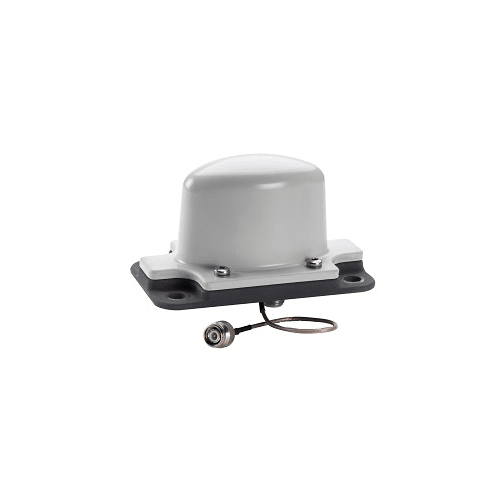

87010023
| H+S | |
|---|---|
| Radome material | Fiberglass |
| Ingress protection (IP Rating) | Mated / IP66 |
| Dimensions | 81 mm x 145 mm x 85 mm (Height x Width x Depth) |
| Environment (application) | Outdoor |
| Back plate/base plate material | Aluminum |
| Remarks | For further information please refer to data sheet. , Indicated VSWR values are valid for a metallic ground plane of 1M x 1M or larger. , Packaging size (outside): 152 x 91 x 125 mmRadiator: Copper and brass.Flange: Anodized AluminumSealing: Neoprene and silicon.All screws and nuts: Stainless steel |
| Radome colour | Grey |
| Antenna configuration | SiSo |
| Bands | 694 MHz ... 960 MHz, VSWR 2, Gain 4.5 dBi960 MHz ... 1710 MHz, VSWR 1.7, Gain 5.5 dBi1710 MHz ... 2200 MHz, VSWR 1.7, Gain 7.5 dBi2200 MHz ... 2700 MHz, VSWR 1.8, Gain 7.5 dBiGPS: 1574.4 MHz ... 1576.4 MHz, VSWR 2, Gain 6 dBi |
| Antenna family | SENCITY® Rail |
| Storage temperature | -40 °C ... 85 °C |
| Back plate/base plate colour | Black |
| Product code | 87010023 |
| Weight | 0.45 kg |
| Flammability rating | EN 45545-2 |
| Operation temperature | -40 °C ... 85 °C |
