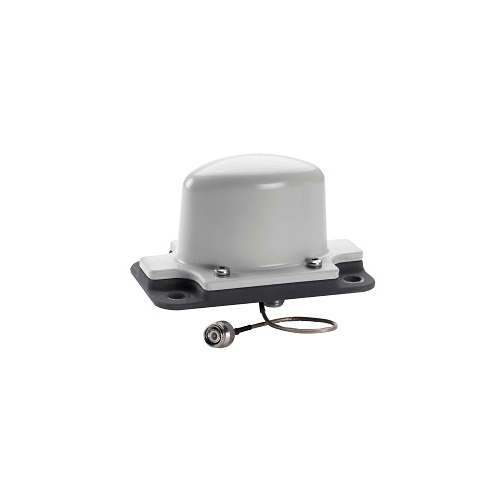

87010011

Produktnummer: 84460318
Huber Suhner
Lagerbeholdning:

H+S
Radome material Fiberglass
Ingress protection (IP Rating) Mated / IP66
Dimensions 81 mm x 145 mm x 85 mm (Height x Width x Depth)
Environment (application) Outdoor
Back plate/base plate material Aluminium
Remarks For further information please refer to data sheet. , Indicated VSWR values are valid for a metallic ground plane of 500mm x 500mm or larger. , Wind load: frontal: 0.5 N, lateral:0.05 N at 600 km/hPackaging size (outside): 152 x 91 x 125 mmRadiator: Copper and brass.Flange: Anodized Aluminum.All screws and nuts: Stainless steel.Color: Grey.Sealing: Neoprene and silicon
Radome colour Grey
Bands 1710 MHz ... 1920 MHz, VSWR 1.7, Gain 7 dBi1920 MHz ... 2600 MHz, VSWR 1.5, Gain 6.5 dBi2600 MHz ... 3200 MHz, VSWR 1.6, Gain 5.5 dBi3200 MHz ... 3800 MHz, VSWR 1.5, Gain 7 dBiGPS: 1574.4 MHz ... 1576.4 MHz, VSWR 2, Gain 6 dBi
Flammability rating EN 45545-2
Antenna family SENCITY® Rail
Storage temperature -40 °C ... 85 °C
Operation temperature -40 °C ... 85 °C
Back plate/base plate colour Black
Product code 87010011
Weight 0.45 kg
