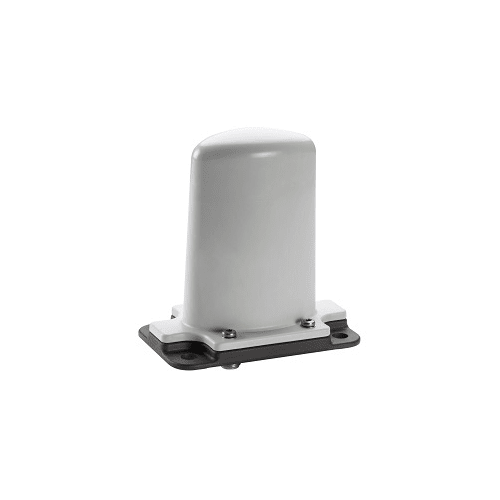

87010009

Produktnummer: 84460314
Huber Suhner
Lagerbeholdning:

H+S
Radome material Fiberglass
Ingress protection (IP Rating) Mated / IP66
Dimensions 150 mm x 145 mm x 85 mm (Height x Width x Depth)
Environment (application) Outdoor
Back plate/base plate material Aluminum
Remarks For further information please refer to data sheet. , Indicated VSWR values are valid for a metallic ground plane of 0.5 mx 0.5 m or larger.Indicated Gain values are valid for a metallic ground plane of 1.0 m x 1.0 m or larger. , Packaging size (outside): 150 x 90 x 190 mmRadiator: Copper and brass.Flange: Aluminum.All screws and nuts: Stainless steel.Sealing: Neoprene and silicon
Radome colour Grey
Antenna configuration SiSo
Bands 430 MHz ... 470 MHz, VSWR 1.5, Gain 3.5 dBi870 MHz ... 960 MHz, VSWR 1.5, Gain 4.5 dBi
Flammability rating EN 45545-2
Antenna family SENCITY® Rail
Storage temperature -40 °C ... 85 °C
Operation temperature -40 °C ... 85 °C
Back plate/base plate colour Black
Product code 87010009
Weight 0.5 kg
