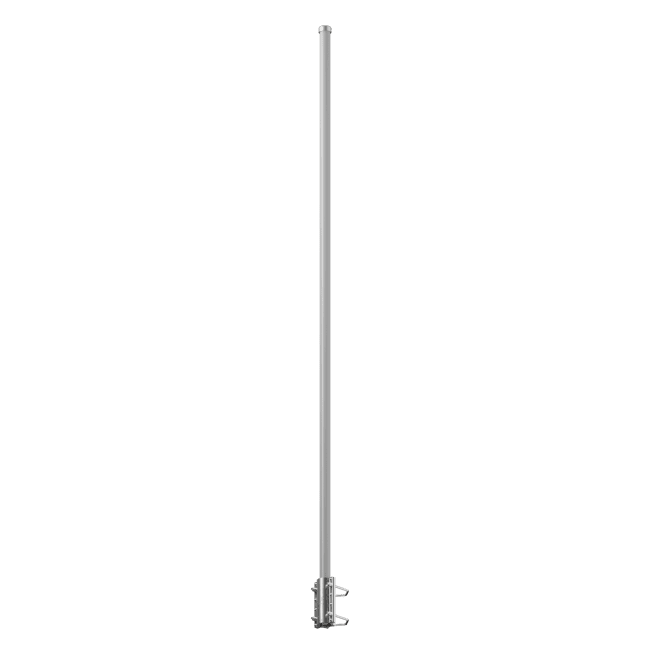

853266 SENCITY® SC Omni Antenna
| H+S | |
|---|---|
| Radome material | Glass Reinforced Plastic (GRP) |
| Dimensions | 3114 mm x 51 mm (Height x Diameter) |
| Back plate/base plate material | Aluminium |
| Remarks | For further information please refer to data sheet. , Packing size (mm): 3379x206x152Mounting:The antenna can be attached laterally at the tip of a tubular mast of 50-94 mm diameter with two U-bolt brackets supplied with theantenna (connecting cable runs outside the mast).Anti-static protection:All metal parts of the antenna as well as the supplied clamp attachment are grounded.The inner conductor is capacitively coupled.Lightning protection:The antenna is designed to withstand a lightning current of up to 150 KA (impulse: 10/350 µs), according to IEC 62305 parts 1-4 andVDE 0855-300, and thereby fulfils the requirements of lightning protection class II. Grounding cross-section: 22 mm2 copper.Material:Base: Weather-proof aluminum. |
| Radome colour | Grey |
| Bands | 450 MHz ... 470 MHz, VSWR 1.5, Gain 8.5 dBi |
| Antenna family | SENCITY® SC Omni Antenna |
| Back plate/base plate colour | Grey |
| Product code | 853266 |
| Weight | 8 kg |
