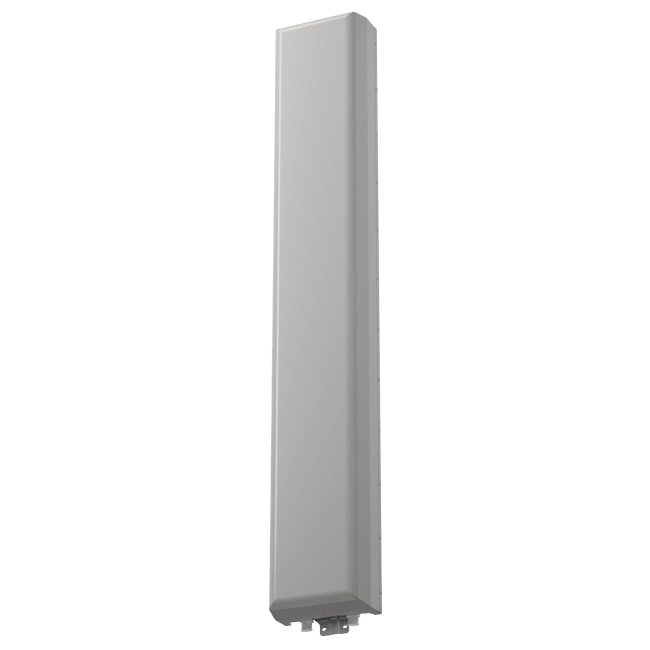

852629 SENCITY® SC Panel Antenna
| H+S | |
|---|---|
| Radome material | Glass Reinforced Plastic (GRP) |
| Dimensions | 1997 mm x 317 mm x 193 mm (Height x Width x Depth) |
| Back plate/base plate material | Aluminium |
| Remarks | For further information please refer to data sheet. , Windload frontal: 890 N at 150 km/h, lateral:480 N at 150 km/h , Wind speed survival: 200 km/hGrounding:The metal parts of the antenna including the mounting kit and the inner conductors are DC grounded.Ice protection:Due to the very sturdy antenna construction and the protection of the radiating system by the radome, the antenna remains operationaleven under icy conditions.Reflector screen: Weather-proof aluminum |
| Radome colour | Grey |
| Bands | 380 MHz ... 430 MHz, VSWR 1.5, Gain 13 dBi430 MHz ... 500 MHz, VSWR 1.5, Gain 13.5 dBi |
| Antenna family | SENCITY® SC Panel Antenna |
| Back plate/base plate colour | Grey |
| Product code | 852629 |
| Weight | 18.5 kg |
