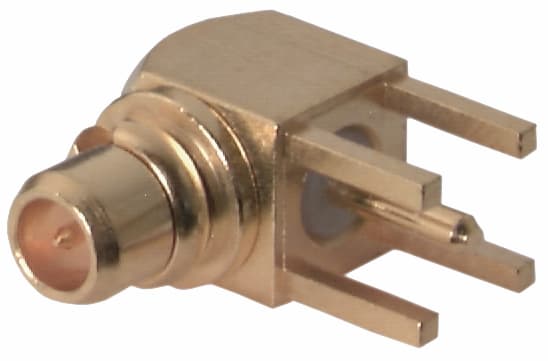

84 MMCX-50-0-1/111 OH
Coaxial connector
MMCX, 50 Ohm, Right angle PCB female
| H+S | |
|---|---|
| Connector type | Right angle PCB plug |
| Number of printlegs | 4 |
| Product code | 84_MMCX-50-0-1/111_O |
| Insulator | PFA / PTFE |
| Centre contact | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Engagement force max | 15 N |
| Details | CAS: 7439-92-1 Lead |
| Board mounting type | through holes |
| Height of stand off HS | 0 mm |
| Disengagement force (to) | 15 N |
| Standard | HUBER+SUHNER-MMCX |
| Mating cycles | 500 |
| Height above PCB HA | 3.8 mm |
| Weight | 0.0005 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Interface type | MMCX |
| Gender | plug |
| Operation temperature | -55 °C ... 155 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Outer conductor | Brass / Gold Plating (without Nickel underplating) |
| Interface frequency | 6 GHz |
| Body | Brass / Gold Plating (without Nickel underplating) |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
