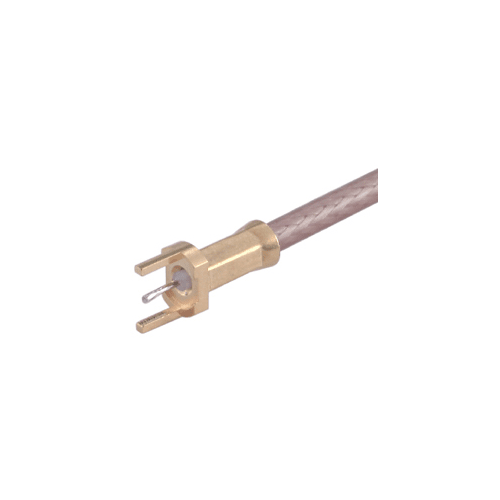

83 CT-0-2-1/-11NE
2006/1907/EC (REACH) | compliant |
Operating Temperature max. | 165°C |
Crimp Ferrule Material | Copper |
Packaging | Single |
Shape | straight |
Height above PCB HA | 8.4mm |
Outer Contact Plating | SUCOPRO Plating |
Operating Temperature min. | -65°C |
2002/96/EC (WEEE) | no special marking needed |
OBJECT_ID | 4248971 |
Outer Contact Material | Brass |
Number of Printlegs | 2 |
Printleg Length HL | 4mm |
Weight | 0.0007kg |
Mounting | pcb |
Type Number | 83_CT-0-2-1/-11_NE |
Junction | cable |
Impedance | other |
Class | 1183 |
Height of Stand Off HS | 0.4mm |
2011/65/EC (RoHS) | compliant |
Body Plating | SUCOPRO Plating |
Board Mounting Type | through holes |
Crimp Ferrule Plating | Gold Plating (without Nickel underplating) |
Body Material | Brass |
External Remarks | PCB connector with stand-offs, suitable for cable group U2 (RG_316_/U), cable entry: crimped |
Gender | none |
ID | 83_CT-0-2-1/-11_N |
Connector Series | CT |
Connector Description | Straight PCB cable terminator |
Pattern | 83 |
Highlight1 | PCB connector with stand-offs |
