82_SMB-S50-0-30/111_NH

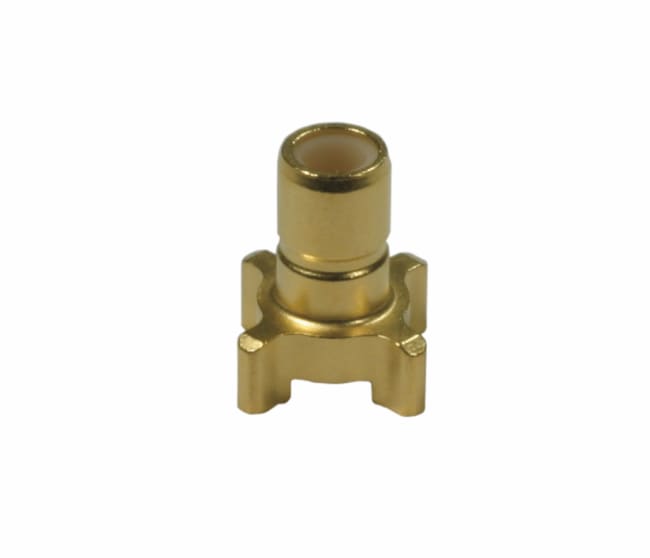

Coaxial connector
SMB, 50 Ohm, Straight PCB female
| H+S | |
|---|---|
| Insulator | PFA / PTFE |
| Interface frequency | 4 GHz |
| Centre contact | Brass / SUCOPRO Plating |
| Connector type | Straight PCB jack |
| Board mounting type | surface mount |
| Interface type | SMB |
| Number of printlegs | 4 |
| Operation temperature | -65 °C ... 165 °C |
| Body | Brass / SUCOPRO Plating |
| Standard | IEC 60169-10_MIL-STD-348A/311_CECC 22130 |
| Impedance | 50 Ω |
| Mating cycles | 500 |
| Outer conductor | Brass / SUCOPRO Plating |
| Product code | 82_SMB-S50-0-30/111_N |
| Height above PCB HA | 8.3 mm |
| Weight | 0.0005 kg |
| Gender | jack |
