82_SMB-50-0-19/111_NH

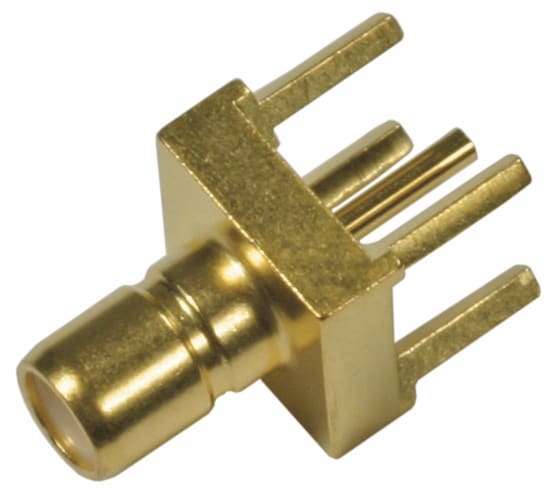

Coaxial connector
|SMB, 50 Ohm, Straight PCB female
| Height above PCB HA | 7.45mm |
| Number of Printlegs | 4 |
| Printleg Length HL | 4.5mm |
| Engangement Force min. | 8N |
| Weight | 0.0066kg |
| Engangement Force max. | 63N |
| Height of Stand Off HS | 0mm |
| Disengagement Force max. | 63N |
| Disengagement Force min. | 8N |
| Board Mounting Type | through holes |
| External Remarks | PCB connector without stand-offs |
| 2002/96/EC (WEEE) | no special marking needed |
| Class | 1183 |
| 2006/1907/EC (REACH) | compliant |
| Body Material | Brass |
| Body Plating | SUCOPRO Plating |
| Centre Contact Material | Brass |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight PCB jack |
| CONNECTOR SERIES | SMB |
| Gender | jack |
| Highlight1 | PCB connector without stand-offs |
| ID | 82_SMB-50-0-19/111_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 4GHz |
| Interface Standards | IEC 60169-10_MIL-STD-348A/311_CECC 22130 |
| Junction | none |
| 2011/65/EC (RoHS) | compliant |
| Mounting | pcb |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -65°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPRO Plating |
| Packaging | Bulk 100 pcs |
| PATTERN CLASSES | 82 |
| CONNECTOR SHAPE | straight |
| Type Number | 82_SMB-50-0-19/111_NH |
| OBJECT_ID | 2625267 |
