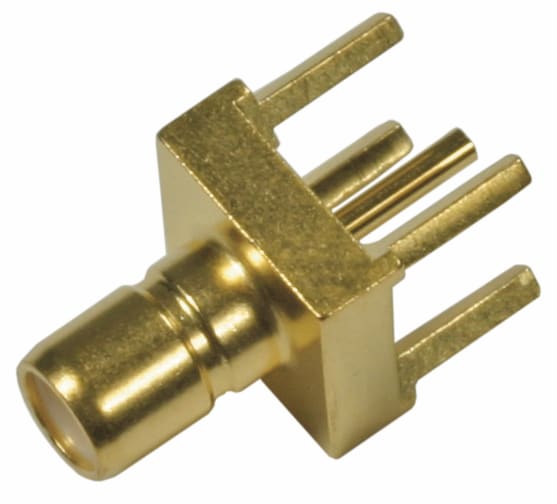

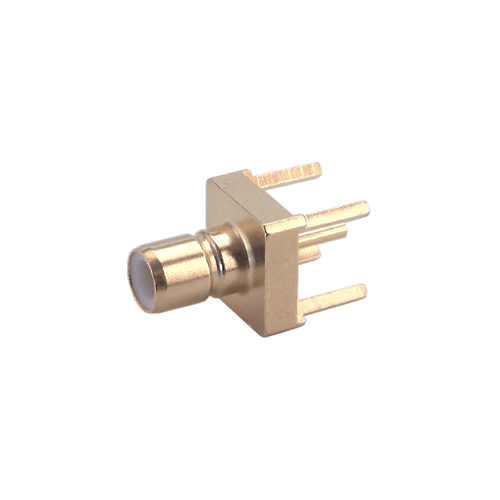

82_SMB-50-0-17/111_NH
Coaxial connector
SMB, 50 Ohm, Straight PCB female
H+S | |
---|---|
Connector type | Straight PCB jack |
Interface type | SMB |
Number of printlegs | 4 |
Operation temperature | -65 °C ... 165 °C |
Outer conductor | Brass / SUCOPRO Plating |
Product code | 82_SMB-50-0-17/111_N |
Insulator | PFA / PTFE |
Centre contact | Brass / Gold Plating (Nickel underplated) |
Interface frequency | 4 GHz |
Engagement force max | 63 N |
Board mounting type | through holes |
Height of stand off HS | 0.5 mm |
Disengagement force (to) | 63 N |
Body | Brass / SUCOPRO Plating |
Standard | IEC 60169-10_MIL-STD-348A/311_CECC 22130 |
Mating cycles | 500 |
Impedance | 50 Ω |
Height above PCB HA | 7.95 mm |
Weight | 0.0067 kg |
Gender | jack |
