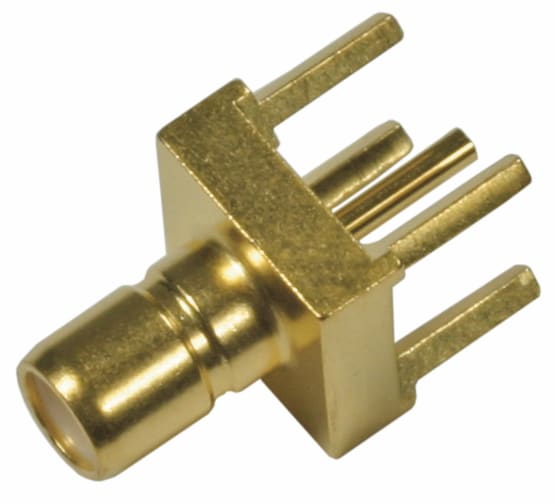

82_SMB-50-0-1/111_NH-1

Produktnummer: 23017254
Huber Suhner
Lagerbeholdning:

Coaxial connector
|SMB, 50 Ohm, Straight PCB female

Height above PCB HA 7.95mm
Number of Printlegs 4
Printleg Length HL 4mm
Engangement Force min. 8N
Weight 0.0015kg
Engangement Force max. 63N
Height of Stand Off HS 0.5mm
Disengagement Force max. 63N
Disengagement Force min. 8N
Board Mounting Type through holes
External Remarks PCB connector with stand-offs
2002/96/EC (WEEE) no special marking needed
Class 1183
2006/1907/EC (REACH) compliant
Body Material Brass
Body Plating SUCOPRO Plating
Centre Contact Material Brass
Centre Contact Plating Gold Plating (Nickel underplated)
Connector Description Straight PCB jack
CONNECTOR SERIES SMB
Gender jack
Highlight1 PCB connector with stand-offs
ID 82_SMB-50-0-1/111_N_-1
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 4GHz
Interface Standards IEC 60169-10-_MIL-STD-348A/311_CECC 22130
Junction none
2011/65/EC (RoHS) compliant
Mounting pcb
Number of Matings 500
Operating Temperature max. 165°C
Operating Temperature min. -65°C
Outer Contact Material Brass
Outer Contact Plating SUCOPRO Plating
Packaging Bulk 100 pcs
PATTERN CLASSES 82
CONNECTOR SHAPE straight
Type Number 82_SMB-50-0-1/111_NH-1
OBJECT_ID 2618687
