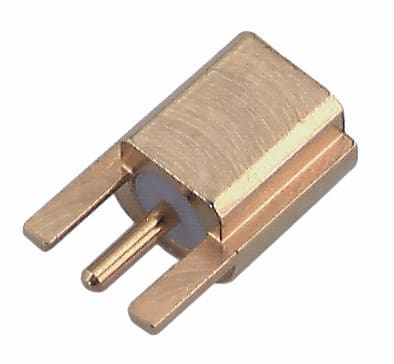

82 MMCX-S50-0-2/111KE
Coaxial connector
MMCX, 50 Ohm, Straight PCB female
| H+S | |
|---|---|
| Connector type | Straight PCB jack |
| Number of printlegs | 2 |
| Product code | 82_MMCX-S50-0-2/111_K |
| Insulator | PFA / PTFE |
| Centre contact | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Engagement force max | 15 N |
| Details | CAS: 7439-92-1 Lead |
| Board mounting type | edge mount |
| Disengagement force (to) | 15 N |
| Standard | HUBER+SUHNER-MMCX |
| Mating cycles | 500 |
| Height above PCB HA | 4.45 mm |
| Weight | 0.0007 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Interface type | MMCX |
| Gender | jack |
| Operation temperature | -55 °C ... 155 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Outer conductor | Brass / Gold Plating (Nickel underplated) |
| Interface frequency | 6 GHz |
| Body | Brass / Gold Plating (Nickel underplated) |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
