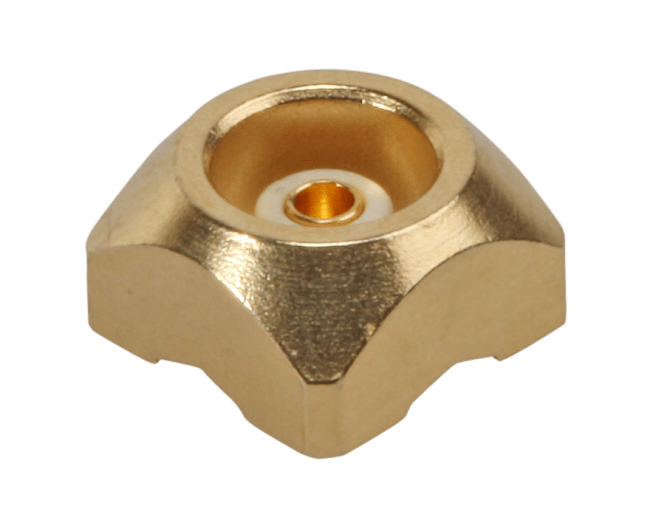

82_MFBX-S50-0-8/111_NM
Coaxial connector
MFBX, 50 Ohm, Straight PCB female
| H+S | |
|---|---|
| Insulator | LCP (Liquid crystal polymer) |
| Centre contact | Brass / SUCOPRO Plating |
| Connector type | Straight PCB jack |
| Details | CAS: 7439-92-1 Lead |
| Board mounting type | surface mount |
| Height of stand off HS | 0.5 mm |
| Standard | HUBER+SUHNER MFBX |
| Mating cycles | 50 |
| Product code | 82_MFBX-S50-0-8/111_N |
| Height above PCB HA | 3.3 mm |
| Weight | 0.0017889 kg |
| Exemptions | 6c |
| Interface frequency | 6 GHz |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Interface type | MFBX |
| Gender | jack |
| Rating | Contains one or more SVHC >0,1% , Compliant with exemption |
| Operation temperature | -55 °C ... 155 °C |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
| Outer conductor | Brass / SUCOPRO Plating |
