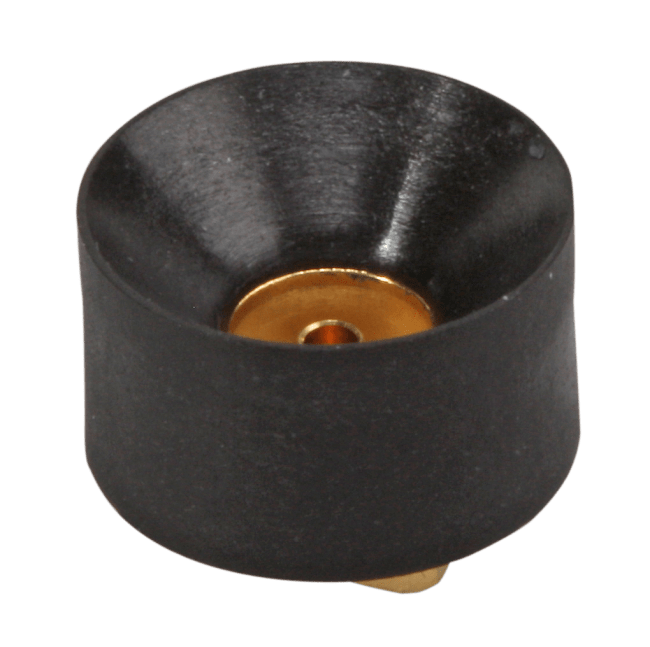

82_MFBX-S50-0-6/111_NM
Coaxial connector
|MFBX, 50 Ohm, Straight PCB female
| Height above PCB HA | 6.36mm |
| Weight | 0.00319kg |
| Height of Stand Off HS | 0.5mm |
| Product is Lead-Free Soldered | not soldered |
| Board Mounting Type | surface mount |
| External Remarks | PCB connector with stand-offs |
| 2002/96/EC (WEEE) | no special marking needed |
| Class | 1183 |
| 2006/1907/EC (REACH) | compliant |
| Body Material | PA (Polyamide) |
| Centre Contact Material | Brass |
| Centre Contact Plating | SUCOPRO Plating |
| Connector Description | Straight PCB jack |
| CONNECTOR SERIES | MFBX |
| Gender | jack |
| Highlight1 | PCB connector with stand-offs |
| ID | 82_MFBX-S50-0-6/111_N |
| Impedance | 50 |
| Insulator Material | LCP (Liquid crystal polymer) |
| Interface Frequency max. | 6GHz |
| Interface Standards | HUBER+SUHNER MFBX |
| Junction | none |
| 2011/65/EC (RoHS) | compliant |
| Mounting | pcb |
| Number of Matings | 50 |
| Operating Temperature max. | 155°C |
| Operating Temperature min. | -55°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPRO Plating |
| Packaging | Tape and Reel |
| PATTERN CLASSES | 82 |
| CONNECTOR SHAPE | straight |
| Type Number | 82_MFBX-S50-0-6/111_NM |
| OBJECT_ID | 7708309 |
