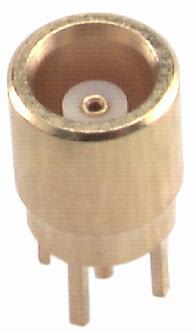

82 MCX-50-0-10/111 NH

Produktnummer: 22651980
Huber Suhner
Lagerbeholdning:

Coaxial connector
|MCX, 50 Ohm, Straight PCB female

Height above PCB HA 6.1mm
Number of Printlegs 4
Printleg Length HL 2.9mm
Weight 0.0006kg
Engangement Force max. 25N
Height of Stand Off HS 0mm
Disengagement Force max. 20N
Disengagement Force min. 8N
Board Mounting Type through holes
External Remarks PCB connector without stand-offs
Highlight2 PCB connector without stand-offs
2002/96/EC (WEEE) no special marking needed
Class 1183
2006/1907/EC (REACH) compliant
Body Material Brass
Body Plating Gold Plating (Nickel underplated)
Centre Contact Material Copper Beryllium Alloy
Centre Contact Plating Gold Plating (Nickel underplated)
Connector Description Straight PCB jack
CONNECTOR SERIES MCX
Gender jack
Highlight1 Low profile / space saving
ID 82_MCX-50-0-10/111_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 6GHz
Interface Standards IEC 60169-36_CECC 22220
Junction none
2011/65/EC (RoHS) compliant
Mounting pcb
Number of Matings 500
Operating Temperature max. 165°C
Operating Temperature min. -65°C
Outer Contact Material Brass
Outer Contact Plating Gold Plating (Nickel underplated)
Packaging Bulk 100 pcs
PATTERN CLASSES 82
CONNECTOR SHAPE straight
Type Number 82_MCX-50-0-10/111_NH
OBJECT_ID 2628598
