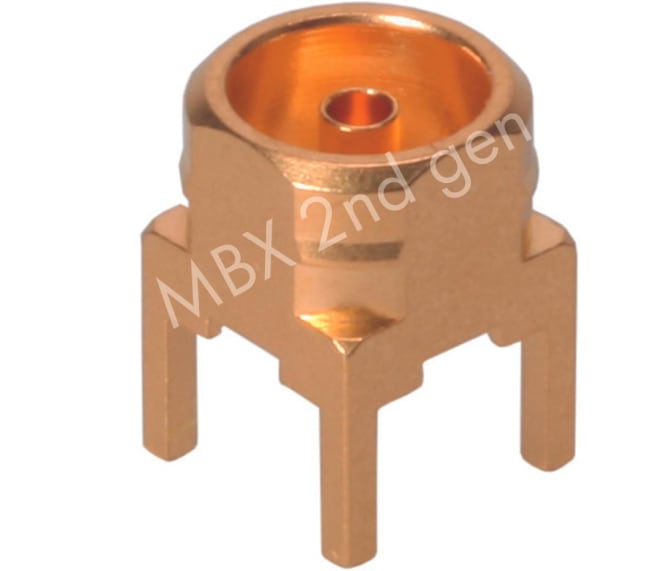

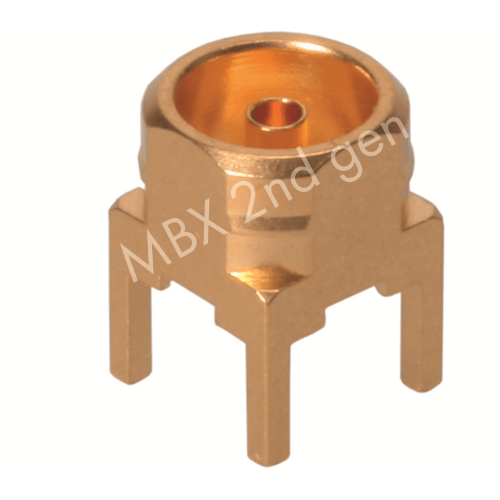

82_MBX-50-0-28/111_NM
Coaxial connector
MBX, 50 Ohm, Straight PCB female
| H+S | |
|---|---|
| Insulator | LCP (Liquid crystal polymer) |
| Interface frequency | 6 GHz |
| Centre contact | Brass / SUCOPRO Plating |
| Connector type | Straight PCB jack |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Details | CAS: 7439-92-1 Lead |
| Board mounting type | through holes |
| Interface type | MBX |
| Height of stand off HS | 0.55 mm |
| Rating | Contains one or more SVHC >0,1% , Compliant with exemption |
| Number of printlegs | 4 |
| Operation temperature | -55 °C ... 155 °C |
| Body | Brass / SUCOPRO Plating |
| Standard | HUBER+SUHNER MBX |
| Impedance | 50 Ω |
| Mating cycles | 100 |
| Regulation | REACH 1907/2006 Article 33 SVHC |
| Outer conductor | Brass / SUCOPRO Plating |
| Product code | 82_MBX-50-0-28/111_N |
| Height above PCB HA | 5 mm |
| Weight | 0.00072 kg |
| Exemptions | 6c |
| Gender | jack |
