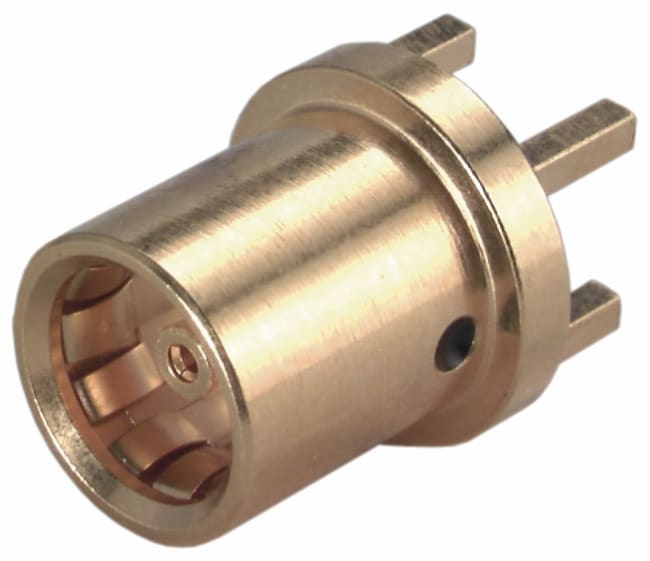

82 BMA-50-0-1/111NE
Coaxial connector
BMA, 50 Ohm, Straight PCB female
| H+S | |
|---|---|
| Connector type | Straight PCB jack |
| Number of printlegs | 4 |
| Product code | 82_BMA-50-0-1/111_N |
| Insulator | PFA / PTFE |
| Centre contact | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Engagement force max | 14 N |
| Details | CAS: 7439-92-1 Lead |
| Board mounting type | through holes |
| Height of stand off HS | 0 mm |
| Standard | IEC 60169-33_MIL-STD-348A/321 |
| Mating cycles | 1000 |
| Height above PCB HA | 9.5 mm |
| Weight | 0.001 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Interface type | BMA |
| Gender | jack |
| Operation temperature | -65 °C ... 125 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Outer conductor | Copper Beryllium Alloy / Gold Plating (without Nickel underplating) |
| Interface frequency | 18 GHz |
| Body | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
