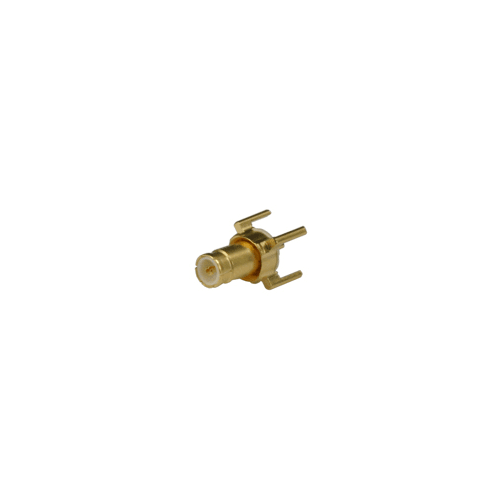

81_MMBX-50-0-11/111_NM
Coaxial connector
|MMBX, 50 Ohm, Straight PCB female
| Height above PCB HA | 9mm |
| Number of Printlegs | 4 |
| Printleg Length HL | 3.4mm |
| Weight | 0.0023kg |
| Engangement Force max. | 15N |
| Height of Stand Off HS | 0.6mm |
| Disengagement Force max. | 15N |
| Product is Lead-Free Soldered | not soldered |
| Board Mounting Type | through holes |
| External Remarks | PCB connector with stand-offs |
| Highlight2 | Through hole technology |
| 2002/96/EC (WEEE) | no special marking needed |
| Class | 1183 |
| 2006/1907/EC (REACH) | compliant |
| Body Material | Brass |
| Body Plating | SUCOPRO Plating |
| Centre Contact Material | Copper Beryllium Alloy |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight PCB plug |
| CONNECTOR SERIES | MMBX |
| Gender | plug |
| Highlight1 | PCB connector with stand-offs |
| ID | 81_MMBX-50-0-11/111_N |
| Impedance | 50 |
| Insulator Material | PTFE / LCP |
| Interface Frequency max. | 12.4GHz |
| Interface Standards | SUHNER-MMBX |
| Junction | none |
| 2011/65/EC (RoHS) | compliant |
| Mounting | pcb |
| Number of Matings | 100 |
| Operating Temperature max. | 155°C |
| Operating Temperature min. | -55°C |
| Outer Contact Material | Bronze |
| Outer Contact Plating | SUCOPRO Plating |
| Packaging | Tape and Reel |
| PATTERN CLASSES | 81 |
| CONNECTOR SHAPE | straight |
| Type Number | 81_MMBX-50-0-11/111_NM |
| OBJECT_ID | 2625862 |
