Produktnummer: 23003870
Huber Suhner

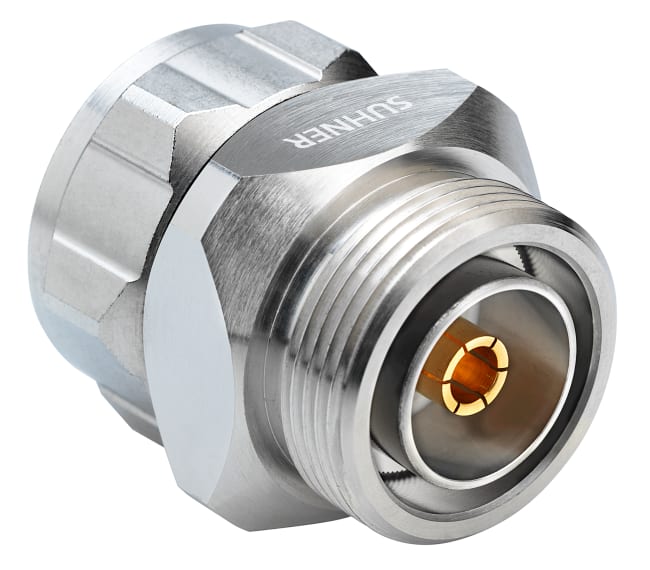

Coaxial adapter
|7/16, 50 Ohm, IM_Standard, male/female

Interface Standards (2) IEC 61169-4_CECC 22190_DIN 47223_VG 95250
Outer Contact Brass, Brass
Centre Contact Plating Gold Plating, Gold Plating
Outer Contact Plating SUCOPLATE (R) Plating, SUCOPLATE (R) Plating
Intermod. Static 2x20W -123dBc
Body Plating SUCOPLATE (R) Plating, SUCOPLATE (R) Plating
Adaptor Configuration within series
Centre Contact Copper Beryllium Alloy, Copper Beryllium Alloy
Weight 0.174kg
Hightlight3 For PIM equipment monitoring and verification
Body Brass, Brass
Coupling Nut Plating SUCOPLATE (R) Plating
External Remarks IM3, 3rd order intermodulation characteristics at 23 °C, power level: -80 dBm (+/- 3 dB) at 1775 MHz, 2 tone carriers: 2 x 43 dBm / 20 W at f1: 1821 MHz and f2: 1867 MHz
Connector Gender 1 plug (male)
Connector Gender 2 jack (female)
Insulator PTFE (Polytetrafluoroethylene), PTFE (Polytetrafluoroethylene)
Coupling Nut Brass
Highlight2 For Test & Measurement applications
2002/96/EC (WEEE) special marking needed
Class 1184
2000/53/EC (ELV) compliant
Connector Series 2 7/16
Connector Series 1 7/16
Connector Description PIM standard plug / jack
Frequency max. Range1 2.7GHz
Frequency min. Range1 0.38GHz
Gender plug/jack
Highlight1 Low passive intermodulation (PIM) adaptor
ID 69_716-50-0-5/133_W
Impedance 50
Interface Frequency max. 7.5GHz
Interface Standards IEC 61169-4_CECC 22190_DIN 47223_VG 95250
Junction adaptor
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 500
Operating Temperature max. 80°C
Operating Temperature min. -55°C
Packaging Single
Type Number 69_716-50-0-5/133_WE
OBJECT_ID 7148104
