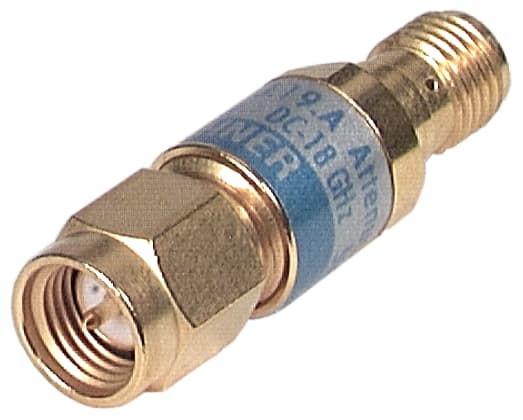

6820.19.A
| Frequency min. Range3 | 8GHz |
| Frequency min. Range4 | 12.4GHz |
| Frequency min. Range2 | 4GHz |
| to Ambient Temperature | 30°C |
| VSWR Range 4 | 1.35 |
| Centre Contact Plating | Gold Plating, Gold Plating |
| VSWR Range 3 | 1.2 |
| VSWR Range 2 | 1.2 |
| Weight | 0.008kg |
| Atten Deviation Range 1 ± | 0.5dB |
| Atten Deviation Range 2 ± | 0.6dB |
| Atten Deviation Range 3 ± | 0.8dB |
| Power Linearly Derated | 0W |
| Outer Contact Plating | Gold Plating |
| Atten Deviation Range 4 ± | 1dB |
| Frequency min. Frame | 0GHz |
| Nominal Attenuation | 20dB |
| Packaging1 | Single |
| Nominal Impedance1 | 50 |
| Nominal Impedance2 | 50 |
| Body/Heat Sink | Copper Beryllium Alloy, Copper Beryllium Alloy |
| at Ambient Temperature | 130°C |
| Coupling Nut Plating | Gold Plating |
| Frequency max. Range4 | 18GHz |
| Outer Contact | Copper Beryllium Alloy, Copper Beryllium Alloy |
| Average Power | 1W |
| Atten Deviation Frame ± | 1dB |
| VSWR Frame | 1.35 |
| Type Number1 | 6820.19.A |
| Peak Power | 500W |
| Frequency max. Frame | 18GHz |
| Interface Standard2 | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Interface Standard1 | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Gasket (Connector 1) | VMQ (Silicone rubber) |
| Puls Width | 5µs |
| Return Loss Range4 | 16.54dB |
| Return Loss Range2 | 20.8dB |
| Return Loss Range3 | 20.83dB |
| Centre Contact | Copper Beryllium Alloy, Copper Beryllium Alloy |
| Body/Heat Sink Plating | Gold Plating, Gold Plating |
| Attenuator Description | Standard Attenuator, Low Power |
| Product is Lead-Free Soldered | true |
| Return Loss Frame | 16.5dB |
| Connector Gender1 | plug (male) |
| Connector Gender2 | jack (female) |
| Insulator | PFA / PTFE, PFA / PTFE |
| Coupling Nut | Bronze |
| Duty Cycle | 0.05% |
| 2002/96/EC (WEEE) | special marking needed |
| Class | 1194 |
| Frequency max. Range2 | 8GHz |
| Frequency max. Range3 | 12.4GHz |
| Connector Serie2 | SMA |
| Connector Serie1 | SMA |
| Frequency max. Range1 | 4GHz |
| Frequency min. Range1 | 0GHz |
| ID | 6820.19.A |
| 2011/65/EC (RoHS) | compliant |
| Operating Temperature max. | 130°C |
| Operating Temperature min. | -55°C |
| Return Loss Range1 | 26.4dB |
| VSWR Range 1 | 1.1 |
| OBJECT_ID | 7138306 |
