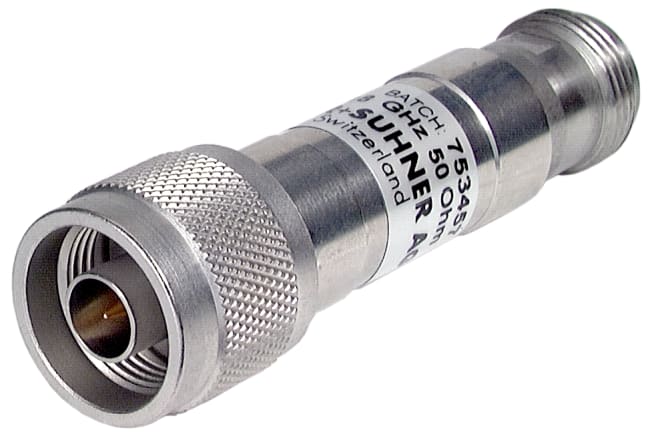

6810.17.B
| Frequency min. Range3 | 6GHz |
| Frequency min. Range4 | 8GHz |
| Frequency min. Range5 | 12.4GHz |
| Frequency min. Range2 | 4GHz |
| to Ambient Temperature | 30°C |
| VSWR Range 5 | 1.25 |
| VSWR Range 4 | 1.15 |
| Centre Contact Plating | Gold Plating, Gold Plating |
| VSWR Range 3 | 1.15 |
| VSWR Range 2 | 1.1 |
| Weight | 0.086kg |
| Atten Deviation Range 1 ± | 0.3dB |
| Atten Deviation Range 2 ± | 0.3dB |
| Atten Deviation Range 3 ± | 0.3dB |
| Power Linearly Derated | 0W |
| Atten Deviation Range 5 ± | 0.8dB |
| Atten Deviation Range 4 ± | 0.6dB |
| Frequency min. Frame | 0GHz |
| Nominal Attenuation | 10dB |
| Packaging1 | Single |
| Nominal Impedance1 | 50 |
| Nominal Impedance2 | 50 |
| Body/Heat Sink | Stainless Steel, Stainless Steel |
| at Ambient Temperature | 130°C |
| Frequency max. Range5 | 18GHz |
| Coupling Nut Plating | SUCOPLATE (R) Plating |
| Frequency max. Range4 | 12.4GHz |
| Outer Contact | Stainless Steel, Stainless Steel |
| Average Power | 1W |
| Atten Deviation Frame ± | 0.8dB |
| VSWR Frame | 1.25 |
| Type Number1 | 6810.17.B |
| Peak Power | 500W |
| Frequency max. Frame | 18GHz |
| Interface Standard2 | IEC 60169-16_MIL-STD-348A/304_CECC 22210 |
| Interface Standard1 | IEC 60169-16_MIL-STD-348A/304_CECC 22210 |
| Gasket (Connector 1) | VMQ (Silicone rubber) |
| Puls Width | 5µs |
| Return Loss Range4 | 23.12dB |
| Return Loss Range5 | 19.08dB |
| Return Loss Range2 | 26.4dB |
| Return Loss Range3 | 23.12dB |
| Centre Contact | Copper Beryllium Alloy, Copper Beryllium Alloy |
| Attenuator Description | Precision Attenuator, Low Power |
| Product is Lead-Free Soldered | true |
| Return Loss Frame | 19.1dB |
| Connector Gender1 | plug (male) |
| Connector Gender2 | jack (female) |
| Insulator | Air Dielectric - Bead - PPH, Air Dielectric - Bead - PPH |
| Coupling Nut | Brass |
| Duty Cycle | 0.05% |
| 2002/96/EC (WEEE) | special marking needed |
| Class | 1194 |
| Frequency max. Range2 | 6GHz |
| Frequency max. Range3 | 8GHz |
| Connector Serie2 | N-precision |
| Connector Serie1 | N-precision |
| Frequency max. Range1 | 4GHz |
| Frequency min. Range1 | 0GHz |
| ID | 6810.17.B |
| 2011/65/EC (RoHS) | compliant |
| Operating Temperature max. | 130°C |
| Operating Temperature min. | -55°C |
| Return Loss Range1 | 26.4dB |
| VSWR Range 1 | 1.1 |
| OBJECT_ID | 7138470 |
