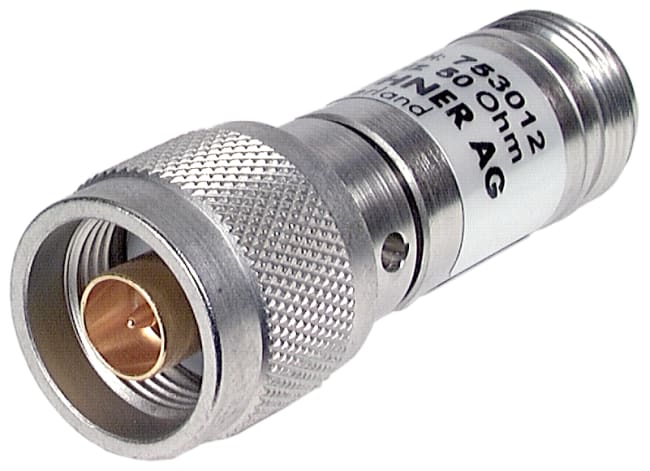

6805.17.A
| H+S | |
|---|---|
| Peak power | 500 W, 5 µs pulse width, 0.05 % duty cycle |
| Body | Brass / SUCOPLATE (R) Plating , Brass / SUCOPLATE (R) Plating |
| Centre contact | Copper Beryllium Alloy / Gold Plating , Copper Beryllium Alloy / Gold Plating |
| Operation temperature | -55 °C ... 130 °C |
| Gasket | VMQ (Silicone rubber) |
| Product code | 6805.17.A |
| Interface | N / jack (female) , N / plug (male) |
| Attenuation nominal | 5 dB |
| Electrical remarks | Peak voltage max. 160V (50 Ohm) |
| Return loss | 19.1 dB |
| VSWR | 1.25 |
| Coupling nut | Brass / SUCOPLATE (R) Plating |
| Operating frequency | 0 GHz ... 12.4 GHz |
| Average power | 2 W at 30 °C ambient temperature. Linearly derated to 0 W at 130 °C ambient temperature. |
| Insulator | PFA / PTFE , PFA / PTFE |
| Outer contact | Brass / Gold Plating , Brass / Gold Plating |
| Impedance | 50Ω |
