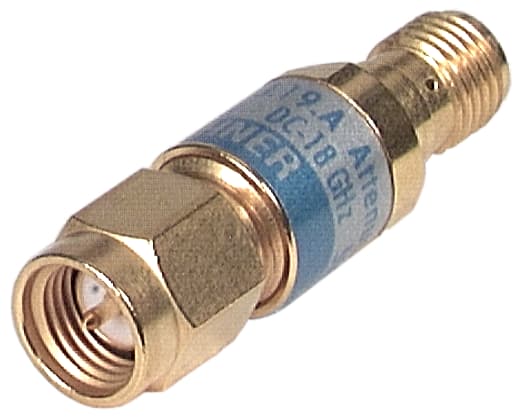

6803.19.A

Produktnummer: 22550028
Huber Suhner
Lagerbeholdning:

Frequency min. Range3 8GHz
Frequency min. Range4 12.4GHz
Frequency min. Range2 4GHz
to Ambient Temperature 30°C
VSWR Range 4 1.35
Centre Contact Plating Gold Plating, Gold Plating
VSWR Range 3 1.2
VSWR Range 2 1.2
Weight 0.008kg
Atten Deviation Range 1 ± 0.3dB
Atten Deviation Range 2 ± 0.3dB
Atten Deviation Range 3 ± 0.5dB
Power Linearly Derated 0W
Outer Contact Plating Gold Plating
Atten Deviation Range 4 ± 0.8dB
Frequency min. Frame 0GHz
Nominal Attenuation 3dB
Packaging1 Single
Nominal Impedance1 50
Nominal Impedance2 50
Body/Heat Sink Copper Beryllium Alloy, Copper Beryllium Alloy
at Ambient Temperature 130°C
Coupling Nut Plating Gold Plating
Frequency max. Range4 18GHz
Outer Contact Copper Beryllium Alloy, Copper Beryllium Alloy
Average Power 2W
Atten Deviation Frame ± 0.8dB
VSWR Frame 1.35
Type Number1 6803.19.A
Peak Power 500W
Frequency max. Frame 18GHz
Interface Standard2 IEC 60169-15_MIL-STD-348A/310_CECC 22110
Interface Standard1 IEC 60169-15_MIL-STD-348A/310_CECC 22110
Gasket (Connector 1) VMQ (Silicone rubber)
Puls Width 5µs
Return Loss Range4 16.54dB
Return Loss Range2 20.8dB
Return Loss Range3 20.83dB
Centre Contact Copper Beryllium Alloy, Copper Beryllium Alloy
Body/Heat Sink Plating Gold Plating, Gold Plating
Attenuator Description Standard Attenuator, Low Power
Product is Lead-Free Soldered true
Return Loss Frame 16.5dB
Connector Gender1 plug (male)
Connector Gender2 jack (female)
Insulator PFA / PTFE, PFA / PTFE
Coupling Nut Bronze
Duty Cycle 0.05%
2002/96/EC (WEEE) special marking needed
Class 1194
Frequency max. Range2 8GHz
Frequency max. Range3 12.4GHz
Connector Serie2 SMA
Connector Serie1 SMA
Frequency max. Range1 4GHz
Frequency min. Range1 0GHz
ID 6803.19.A
2011/65/EC (RoHS) compliant
Operating Temperature max. 130°C
Operating Temperature min. -55°C
Return Loss Range1 26.4dB
VSWR Range 1 1.1
OBJECT_ID 7138439
