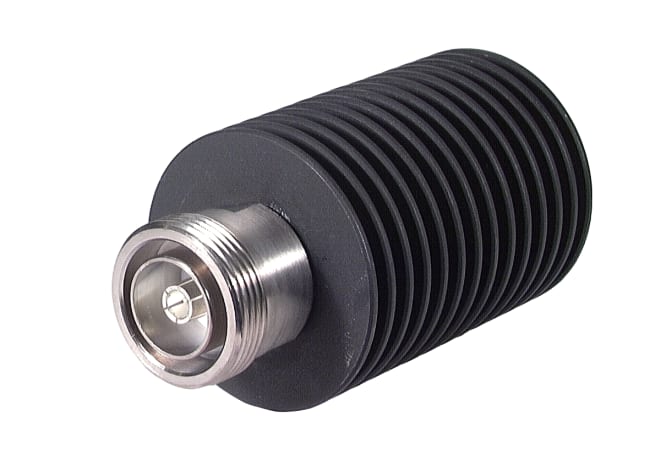

6560.41.BA
| H+S | |
|---|---|
| Peak power | 1500 W, 5 µs pulse width, 0.05 % duty cycle |
| Body | Aluminium / Anodized |
| Centre contact | Copper Beryllium Alloy / Silver Plating |
| Details | CAS: 7439-92-1 Lead |
| Return loss | 20.8 dB |
| VSWR | 1.2 |
| Operating frequency | 0 GHz ... 5 GHz |
| Average power | 60 W at 25 °C ambient temperature. Linearly derated to W at 150 °C ambient temperature. |
| Outer contact | Brass / SUCOPLATE (R) Plating |
| Product code | 6560.41.BA |
| Interface | 7/16 / jack (female) |
| Impedance | 50Ω |
| Weight | 0.377 kg |
| Exemptions | 6c |
| Insulator | PFA / PTFE |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Rating | Contains one or more SVHC >0,1% , Compliant with exemption |
| Operation temperature | -40 °C ... 150 °C |
| Regulation | REACH 1907/2006 Article 33 SVHC |
