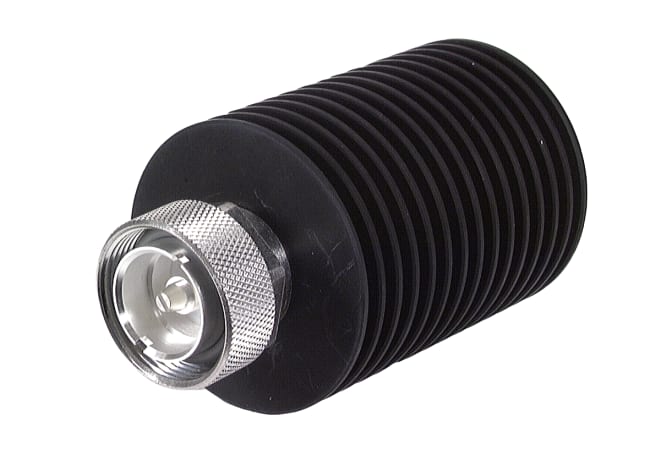

Produktnummer: 23008377
Huber Suhner

Frequency min. 2 2 GHz
Outer Contact Brass
to Ambient Temperature 25 °C
Average Power 60 W
Centre Contact Plating Silver Plating
VSWR2 1.2
VSWR Constant 1.1
Power Linearly Derated to N W
Outer Contact Plating Silver Plating
Frequency min. Frame N GHz
VSWR Frame 1.2
Type Number1 6560.41.AA
Packaging1 Single
Peak Power 1500 W
Frequency max. Frame 5 GHz
Weight 0.382 kg
Nominal Impedance 1 50
Interface Standard1 IEC 60169-4_CECC 22190_DIN 47223_VG 95250
Gasket (Connector 1) VMQ (Silicone rubber)
Puls Width 5 µs
Body Heat Sink Aluminium
Return Loss2 20.8 dB
Centre Contact Brass
Body Heat Sink Plating Anodized
at Ambient Temperature 150 °C
Return Loss Frame 20.8 dB
Resistor Substrate Beryllium Oxide
Termination Description Standard Termination, Medium Power
Coupling Nut Platin SUCOPLATE (R) Plating
+VSWR Gradient*f 0.02 GHz
Connector Gender 1 plug (male)
Insulator PFA / PTFE
Coupling Nut Brass
Duty Cycle 0.05 %
2002/96/EC (WEEE) special marking needed
Class 1195
Connector Series 1 7/16
Frequency max. 2 5 GHz
Frequency max. 1 2 GHz
Frequency min. 1 N GHz
ID 6560.41.AA
2011/65/EC (RoHS) compliant
Operating Temperature max. 150 °C
Operating Temperature min. -40 °C
Return Loss1 26.44 dB
VSWR1 1.1
