Produktnummer: 84059933
Huber Suhner

Outer Contact Stainless Steel
to Ambient Temperature 25°C
Average Power 25W
Centre Contact Plating Gold Plating
Power Linearly Derated to 5W
Outer Contact Plating Passivated (Plating)
Frequency min. Frame 0GHz
VSWR Frame 1.2

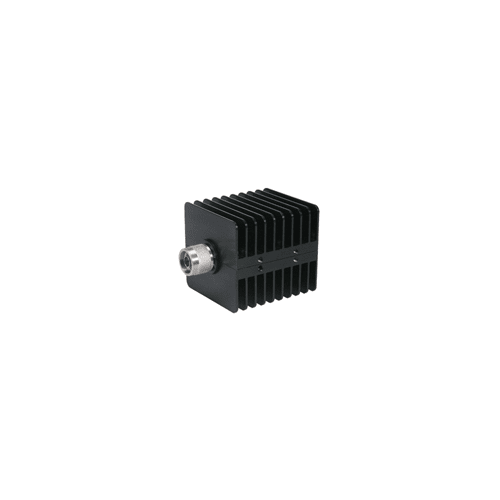

Type Number1 65025_N-50-1/199_NE
Packaging1 Single
Peak Power 500W
Frequency max. Frame 6GHz
Weight 0.397kg
Nominal Impedance 1 50
Interface Standard1 IEC 60169-16_MIL-STD-348A/304_CECC 22210
Puls Width 5µs
Body Heat Sink Aluminium
Centre Contact Copper Beryllium Alloy
Body Heat Sink Plating Anodized
at Ambient Temperature 125°C
Return Loss Frame 20.8dB
Termination Description Standard Termination, Medium Power
Coupling Nut Platin Passivated (Plating)
Connector Gender 1 plug (male)
Insulator PTFE (Polytetrafluoroethylene)
Coupling Nut Stainless Steel
Duty Cycle 0.05%
2002/96/EC (WEEE) special marking needed
Class 1195
Connector Series 1 false
Frequency max. 1 6GHz
Frequency min. 1 0GHz
ID 65025_N-50-1/199_N
2011/65/EC (RoHS) compliant
Operating Temperature max. 125°C
Operating Temperature min. -65°C
VSWR1 1.2
OBJECT_ID 7138715
