Produktnummer: 84066625
Huber Suhner

Frequency min. 2 40GHz
Outer Contact Copper Beryllium Alloy
to Ambient Temperature 25°C
Average Power 0.5W
Centre Contact Plating Gold Plating
VSWR2 1.6
Power Linearly Derated to 0.1W
Outer Contact Plating Gold Plating (without Nickel underplating)
Frequency min. Frame 0GHz
VSWR Frame 1.6

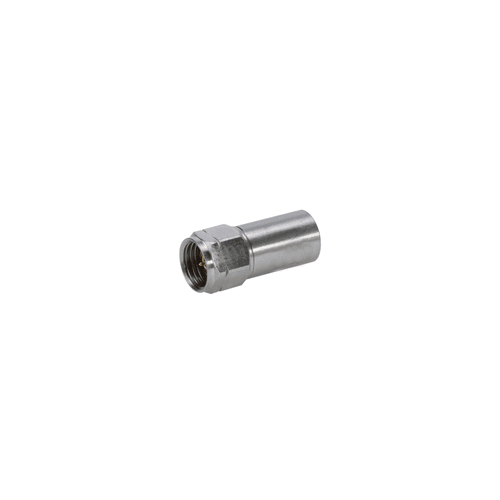

Type Number1 6500_PC24-50-1/119_NE
Packaging1 Single
Frequency max. Frame 50GHz
Weight 0.0058kg
Nominal Impedance 1 50
Body Heat Sink Stainless Steel
Centre Contact Copper Beryllium Alloy
Body Heat Sink Plating Passivated (Plating)
at Ambient Temperature 85°C
Return Loss Frame 12.7dB
Termination Description Precision Termination, Low Power
Coupling Nut Platin Passivated (Plating)
Connector Gender 1 plug (male)
Coupling Nut Stainless Steel
2002/96/EC (WEEE) special marking needed
Class 1195
Connector Series 1 PC 2.4
Frequency max. 2 50GHz
Frequency max. 1 40GHz
Frequency min. 1 0GHz
ID 6500_PC24-50-1/119_N
2011/65/EC (RoHS) compliant
Operating Temperature max. 85°C
Operating Temperature min. -45°C
VSWR1 1.4
OBJECT_ID 7138736
