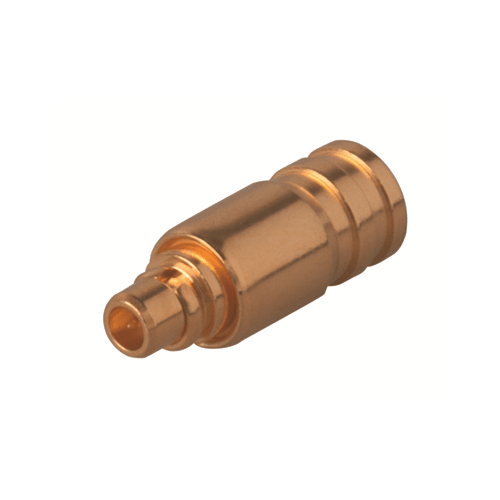

65_MMCX-50-0-2/111_NE
H+S | |
---|---|
Electrical remarks | Standard spec for 1 Watt platform desing, samll interfaces, DOC-0000643688 |
Body | Brass / Gold Plating |
Centre contact | Copper Beryllium Alloy / SUCOPRO / Gold Plating |
Details | CAS: 7439-92-1 Lead |
Return loss | 20.1 dB |
VSWR | 1.22 |
Operating frequency | 0 GHz ... 6 GHz |
Average power | 1 W at 85 °C ambient temperature. Linearly derated to W at 115 °C ambient temperature. |
Outer contact | Brass / Gold Plating |
Product code | 65_MMCX-50-0-2/111_N |
Interface | MMCX / plug (male) |
Impedance | 50Ω |
Weight | 0.001 kg |
Exemptions | 6c |
Insulator | PFA / PTFE |
Directive | RoHS 2011/65/EU and (EU) 2015/863 |
Rating | Contains one or more SVHC >0,1% , Compliant with exemption |
Operation temperature | -40 °C ... 115 °C |
Regulation | REACH 1907/2006 Article 33 SVHC |
