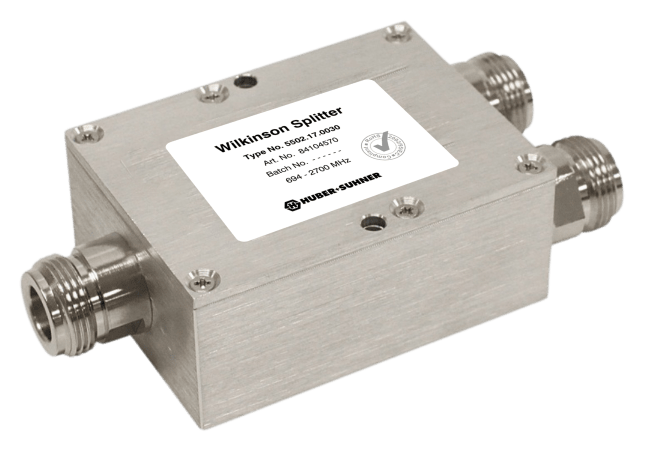

5502.17.0030
H+S | |
---|---|
Interface | NNN |
Housing material and surface treatment | Aluminium / Passivated |
Gender | jack (female)jack (female)jack (female) |
Return loss input port | > 19 dB |
Width | 46 mm |
Environment (application) | Indoor |
Depth | 61 mm |
Port desigination | Input 1Output 1Output 2 |
Characteristic impedance | 50 Ω |
Splitter loss | 3 dB |
Isol. between output ports | 20 dB |
Storage temperature | -50 °C ... 70 °C |
Operation temperature | -30 °C ... 70 °C |
Amplitude tracking btw. output port | 0.3 dB |
Frequency range | 0.694 GHz ... 2.7GHz |
Return loss output port | > 19 dB |
Height | 26 mm |
Composit power max | 50 W |
Insertion loss | < 0.6 dB |
Product code | 5502.17.0030 |
Weight | 0.185 kg |
