48-12E9/WSN(ZNG)Y-Z150

Produktnummer: 22523759
Huber Suhner
Lagerbeholdning:

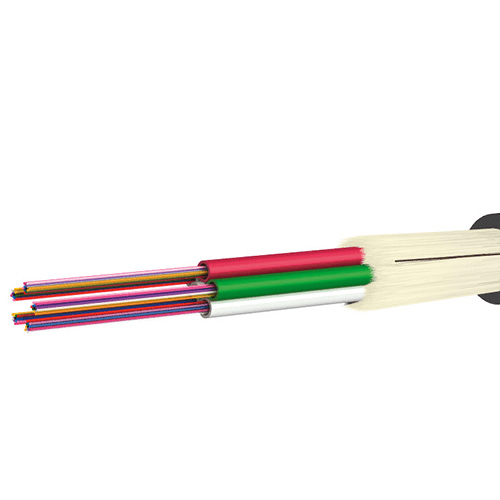

48-fiber, 9/125 µm, Ø 15 mm, jacket color: PE blac

Mechanical Thermal Properies For high mechanical and thermal stability
Water penetr Standard IEC 60794-1-2 F5B
Impact Standard IEC 60794-1-2 E4
Tension Test Standard IEC 60794-1-2 E1
Strain Reliefed Armouring Rodent-protected, glass-armoured
Wavelength for singlemode at 1550nm, for multimode at 1300nm
Layer Type 2 Ripcords
Temperature Standard IEC 60794-1-2 F1
Crush Test Standard IEC 60794-1-2 E3
Strength Member Type Strength member
Installation High chemical resistance against acids/alkalies
Other Properties Longitudinal and transversal watertight cable
Other Properties2 For Masterline application
Class 1032
Application For use in ducts and in unprotected environment
Cable Type Metal free outdoor cable
Cable Description Multi-fiber Loose Tube Cable
Outer Jacket Type Outer jacket with two orange stripes / LD-PE
Outer Jacket Ø 15mm
Reinforcement Type Reinforcement / glass-roving
Number of max. Fibres 60
Tube Type Multi-fiber loose tube up to 12 fibers
Fire behavior Halogen free and non-corrosive fire gases
ID 60-.../WSN(ZNG)Y-...150
OBJECT_ID 7389961
