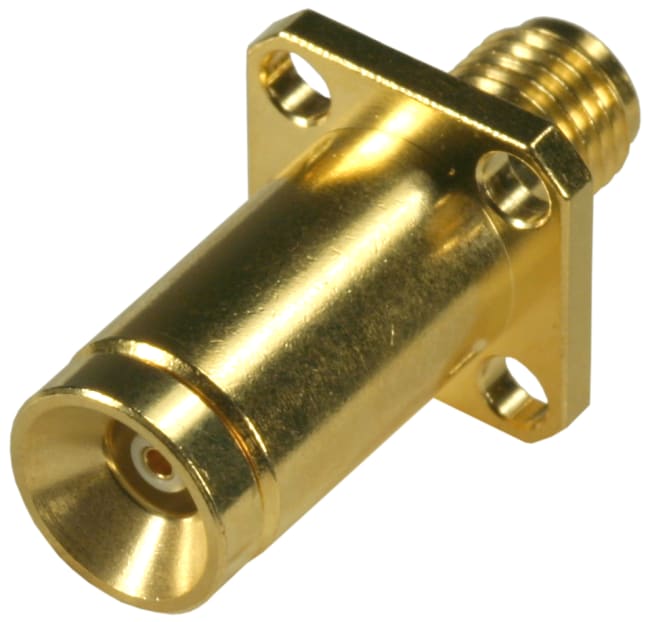

37_MMBX-SMA-50-1/111_NE
Coaxial adapter
|MMBX - SMA, 50 Ohm, Panel,female/female, flange mount
| Interface Standards (2) | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Frequency min. Range3 | 6GHz |
| Frequency min. Range2 | 2.5GHz |
| Outer Contact | Brass, Copper Beryllium Alloy |
| Flange Type | square flange |
| Centre Contact Plating | SUCOPRO Plating, SUCOPRO Plating |
| VSWR Range 3 | 1.5 |
| VSWR Range 2 | 1.17 |
| Outer Contact Plating | SUCOPRO Plating, SUCOPRO Plating |
| Body Plating | SUCOPRO Plating, SUCOPRO Plating |
| Flange Dimension | 12.7 X 12.7 |
| Return Loss Range2 | 22dB |
| Return Loss Range3 | 14dB |
| Adaptor Configuration | between series |
| Centre Contact | Copper Beryllium Alloy, Copper Beryllium Alloy |
| Weight | 0.0158kg |
| Body | Brass, Brass |
| Connector Gender 1 | jack (female) |
| Connector Gender 2 | jack (female) |
| Insulator | PTFE (Polytetrafluoroethylene), PTFE (Polytetrafluoroethylene) |
| 2002/96/EC (WEEE) | no special marking needed |
| Class | 1184 |
| 2000/53/EC (ELV) | compliant |
| Connector Series 2 | SMA |
| Connector Series 1 | MMBX |
| Frequency max. Range2 | 6GHz |
| Frequency max. Range3 | 12.4GHz |
| Connector Description | Panel adaptor jack/jack, flange mount |
| Frequency max. Range1 | 2.5GHz |
| Frequency min. Range1 | 0GHz |
| Gender | jack/jack |
| ID | 37_MMBX-SMA-50-1/111_N |
| Impedance | 50 |
| Interface Frequency max. | 12.4GHz |
| Interface Standards | SUHNER-MMBX |
| Junction | adaptor |
| 2011/65/EC (RoHS) | compliant |
| Mounting | panel |
| Number of Matings | 500 |
| Operating Temperature max. | 155°C |
| Operating Temperature min. | -55°C |
| Packaging | Single |
| PATTERN CLASSES | 37 |
| Return Loss Range1 | 31dB |
| CONNECTOR SHAPE | straight |
| Type Number | 37_MMBX-SMA-50-1/111_NE |
| VSWR Range 1 | 1.06 |
| OBJECT_ID | 3097300 |
