| H+S |
| Nominal discharge current In |
100 A, (test pulse 8/20 µs), line to line , 2.5 kA, (test pulse 8/20 µs), line to ground |
| Operating voltage UC |
6 V , line to line , max. 42.4 V AC, pair to pair , max. 60 V DC, pair to pair |
| Cable gland material |
PA66 (Polyamide) |
| Total nominal discharge current In |
10 kA, (test pulse 8/20 µs), all lines to Ground |
| Moisture resistance according |
MIL-STD-202, Method 106 |
| Voltage protection level UP |
typ. 20 V, (test pulse 4 kV 1.2/50; 2 kA 8/20 µs), line to line , typ. 700 V, (test pulse 4 kV 1.2/50; 2 kA 8/20 µs), line to ground |
| Vibration according |
MIL-STD-202, Method 204, Cond. D |
| Storage temperature |
-40 °C ... 85 °C |
| Nominal current IL |
1.5 A, per pair |
| Nominal voltage UN |
60 V |
| Thermal shock according |
MIL-STD-202, Method 107, Cond. B |
| Insertion loss typical |
≤ 0.5 dB |
| Product code |
3414.99.0008 |
| Main path connectors |
Port 1: unprotected, RJ45 jack 8-Pin jack (female)Port 2: protected, RJ45 jack 8-Pin jack (female) |
| Housing material / plating |
Aluminium |
| Clamping voltage |
15 V, line to line , 90 V, line to ground |
| Electrical remarks |
All eight lines protected Pinning: 1/2, 3/6, 4/5, 7/8 |
| Ingress protection (IP Rating) |
IP68 |
| Mounting and grounding |
M6 (screw) , hose clamp to a mast / pole |
| Hose clamp material / plating |
Stainless Steel |
| Weight |
337 g |
| Impedance |
100 Ω |
| Operation temperature |
-40 °C ... 85 °C |
| Product description |

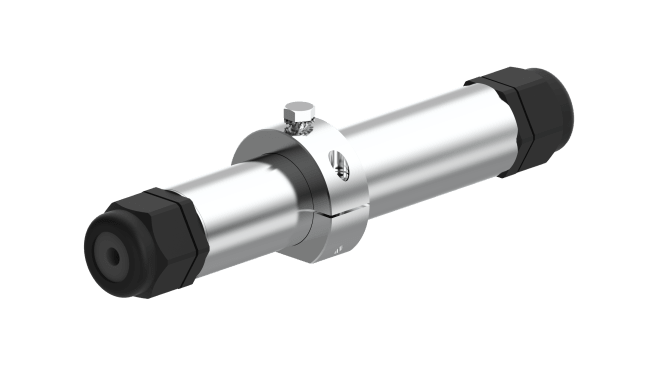

Data Line Protector Symmetric Pair |
| Frequency frame |
0 MHz to 100 MHz |
